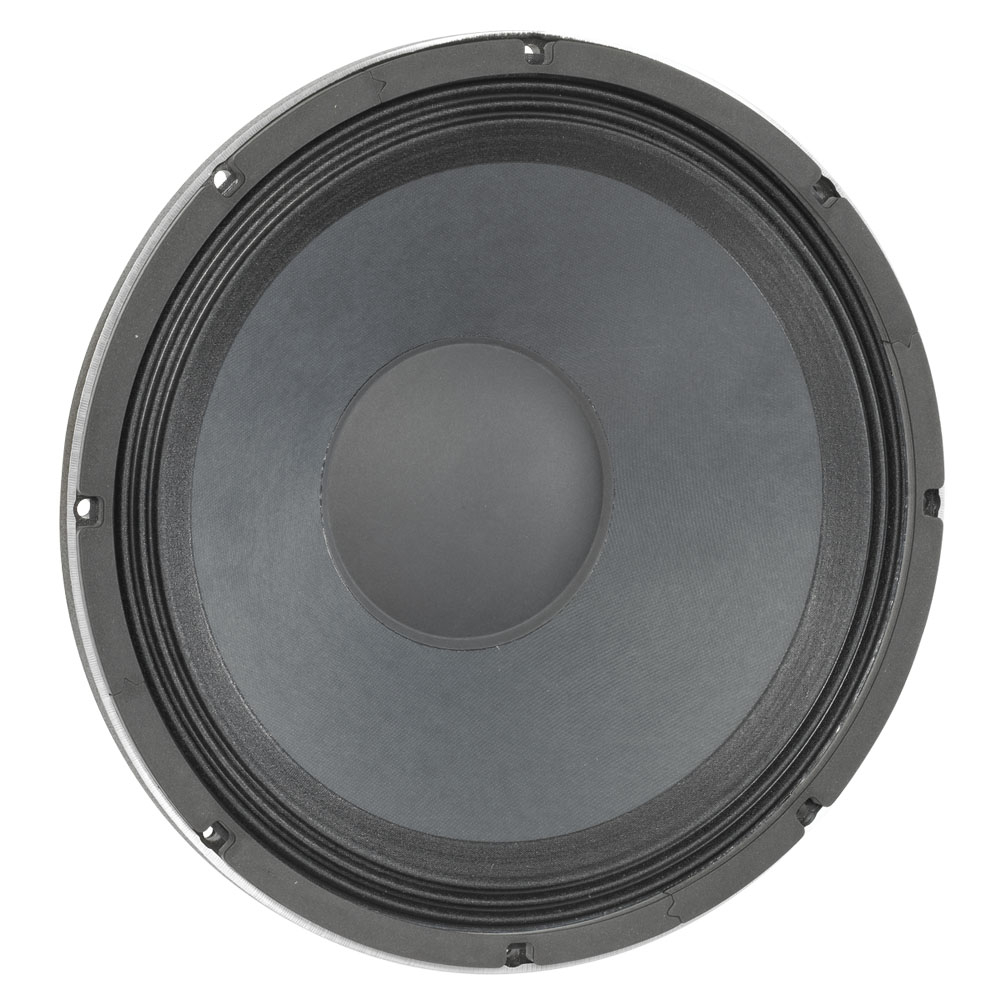

Kappalite 3015 LF
15" Speaker 450 W 8 Ohms
Item no.: EKL3015LFA
Guarantee: 24 months
EAN: 4049521025716
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Kappalite™ 3015LF Neodymium
Recommended for professional audio and bass in a vented enclosure.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
3 "
Voice Coil
76.2 mm
Overall diameter
389.13 mm
Pitch Circle Diameter
369.8 mm
Cut- out Measurement
356.36 mm
Diameter of fixing holes
7.11 mm
Depth
184.15 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
450 W
Sensitivity (1 W / 1 m)
98.4 dB
Frequency response
40 - 1500 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
9.27 mm
Fs (Resonance Frequency)
43.65 Hz
Re (DC resistance)
5.5 Ohm(s)
Qms (mechanical quality)
8.97
Le (inductance of the voice coil)
0.93 mH
Qes (electrical quality)
0.48
Qts (overall quality)
0.46
Vas (equivalent volume)
150.89
Mms (moving mass)
93.4 g
BL (power factor)
17 T/m
Xmax (maximum displacement)
9.6 mm
Cms (elasticity of the suspension)
0.14 mm/N
Sd (membrane area)
881.1 cm²
Weight
4,291 kg
