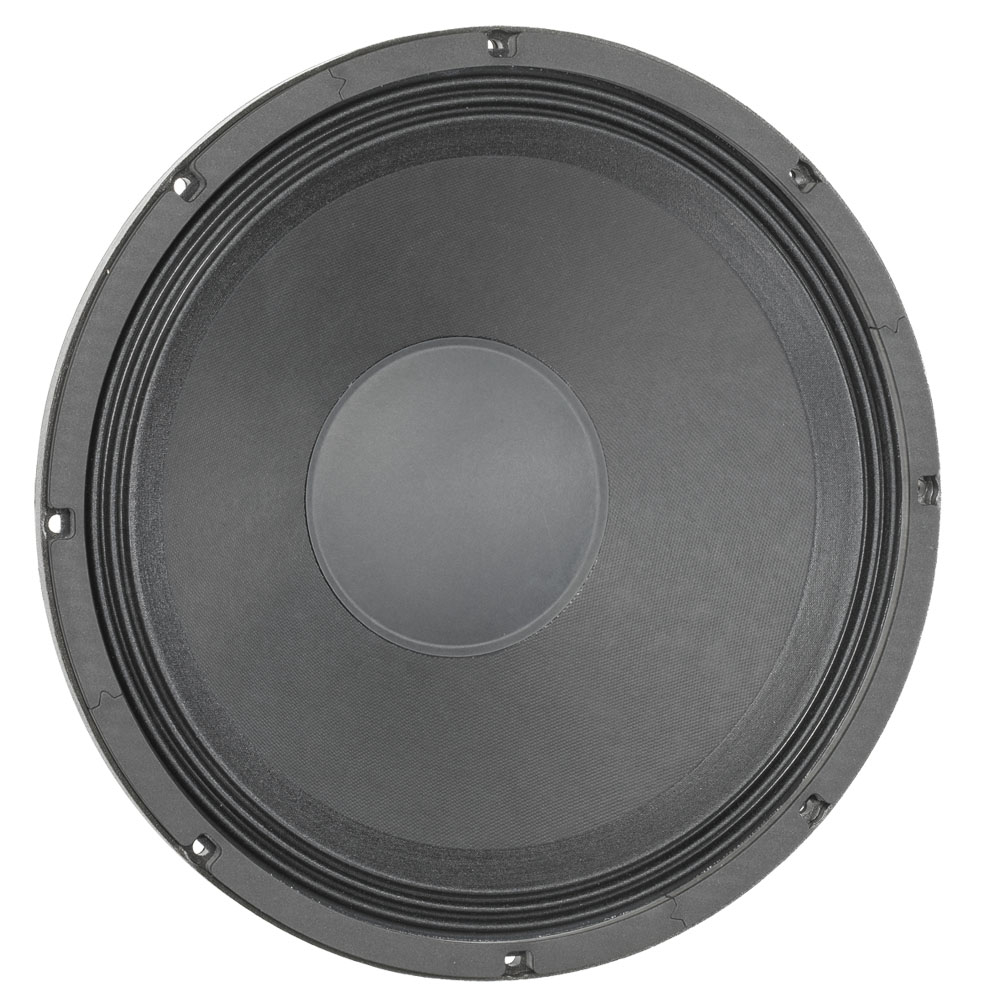

Kappa Pro 15 LFA
15" Speaker 600 W 8 Ohm - die-cast Basket
Item no.: EKP15LFA
Guarantee: 24 months
EAN: 4049521025839
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
KAPPA PRO-15LF-2 Professional Series
Recommended for professional audio in a vented bass enclosure.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 Inch
Nominal Diameter
381 mm
Voice Coil
3 Inch
Voice Coil
76.2 mm
Overall diameter
386.4 mm
Pitch Circle Diameter
369.9 mm
Cut- out Measurement
355.5 mm
Diameter of fixing holes
7.1 mm
Depth
167
Nominal Impedance
8
Nominal Load Capacity
600 W
maximum rated load
1200 W
Sensitivity (1 W / 1 m)
97.8 dB
Frequency response
38 Hz - 1800 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Fs (Resonance Frequency)
35 Hz
Re (DC resistance)
6.5 Ω
Qms (mechanical quality)
7.3
Le (inductance of the voice coil)
1.4 MH
Qes (electrical quality)
0.32
Qts (overall quality)
0.3
Vas (equivalent volume)
198.8
Mms (moving mass)
102 g
BL (power factor)
21.6 T/M
Xmax (maximum displacement)
6.7 mm
Cms (elasticity of the suspension)
2 MM/N
Sd (membrane area)
856.3 CM²
