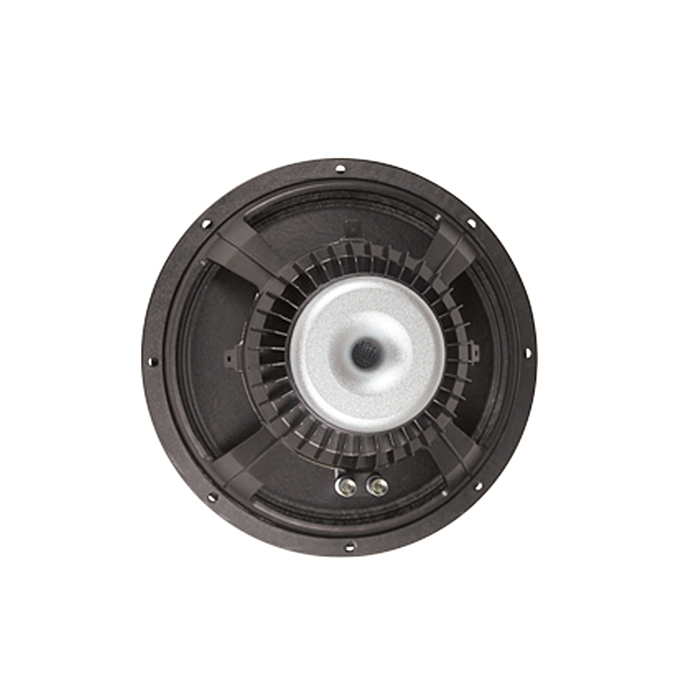

EPS 12 C
12" Speaker 225 W 4 Ohms
Item no.: EPS12C
Guarantee: 24 months
EAN: 4049521150708
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
12" Speaker 225 W 4 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 Inch
Nominal Diameter
305 mm
Voice Coil
3 Inch
Voice Coil
76.2 mm
Overall diameter
314.5 mm
Pitch Circle Diameter
295 mm
Cut- out Measurement
281 mm
Diameter of fixing holes
7.1 mm
Depth
143
Nominal Impedance
4
Nominal Load Capacity
225 W
maximum rated load
450 W
Sensitivity (1 W / 1 m)
100 dB
Frequency response
45 Hz - 4900 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
9 mm
Fs (Resonance Frequency)
49.2 Hz
Re (DC resistance)
3.6 Ω
Qms (mechanical quality)
10.2
Le (inductance of the voice coil)
0.42 MH
Qes (electrical quality)
0.24
Qts (overall quality)
0.24
Vas (equivalent volume)
82.4
Mms (moving mass)
47.4 g
BL (power factor)
14.7 T/M
Xmax (maximum displacement)
3 mm
Cms (elasticity of the suspension)
0.22 MM/N
Sd (membrane area)
519.5 CM²
