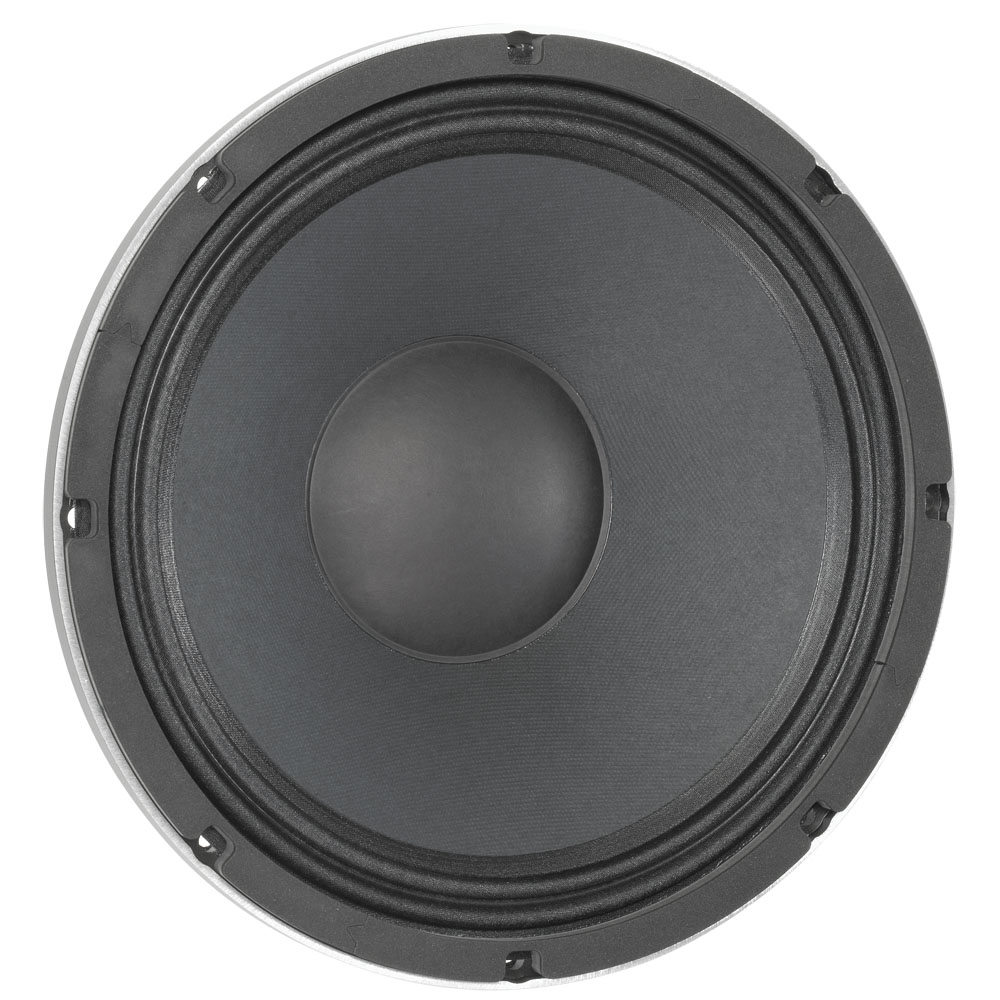

Deltalite II 2512 A
12" Speaker 250 W 8 Ohms
Item no.: EDL22512A
Guarantee: 24 months
EAN: 4049521025174
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
DELTALITE®-II 2512 Neodymium
Recommended for professional audio as a mid/hi or full-range and monitor; also for bass guitar. Works well in sealed or vented enclosures.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 Inch
Nominal Diameter
304.8 mm
Voice Coil
2.5 Inch
Voice Coil
63.5 mm
Overall diameter
314.5 mm
Pitch Circle Diameter
295.1 mm
Cut- out Measurement
280.9 mm
Diameter of fixing holes
7 mm
Depth
154
Nominal Impedance
8
Nominal Load Capacity
250 W
maximum rated load
500 W
Sensitivity (1 W / 1 m)
99.9 dB
Frequency response
58 Hz - 4300 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
7 mm
Fs (Resonance Frequency)
44 Hz
Re (DC resistance)
5.17 Ω
Qms (mechanical quality)
4.17
Le (inductance of the voice coil)
0.43 MH
Qes (electrical quality)
0.45
Qts (overall quality)
0.41
Vas (equivalent volume)
134.88
Mms (moving mass)
37 g
BL (power factor)
10.69 T/M
Xmax (maximum displacement)
4.9 mm
Cms (elasticity of the suspension)
0.36 MM/N
Sd (membrane area)
519.5 CM²
