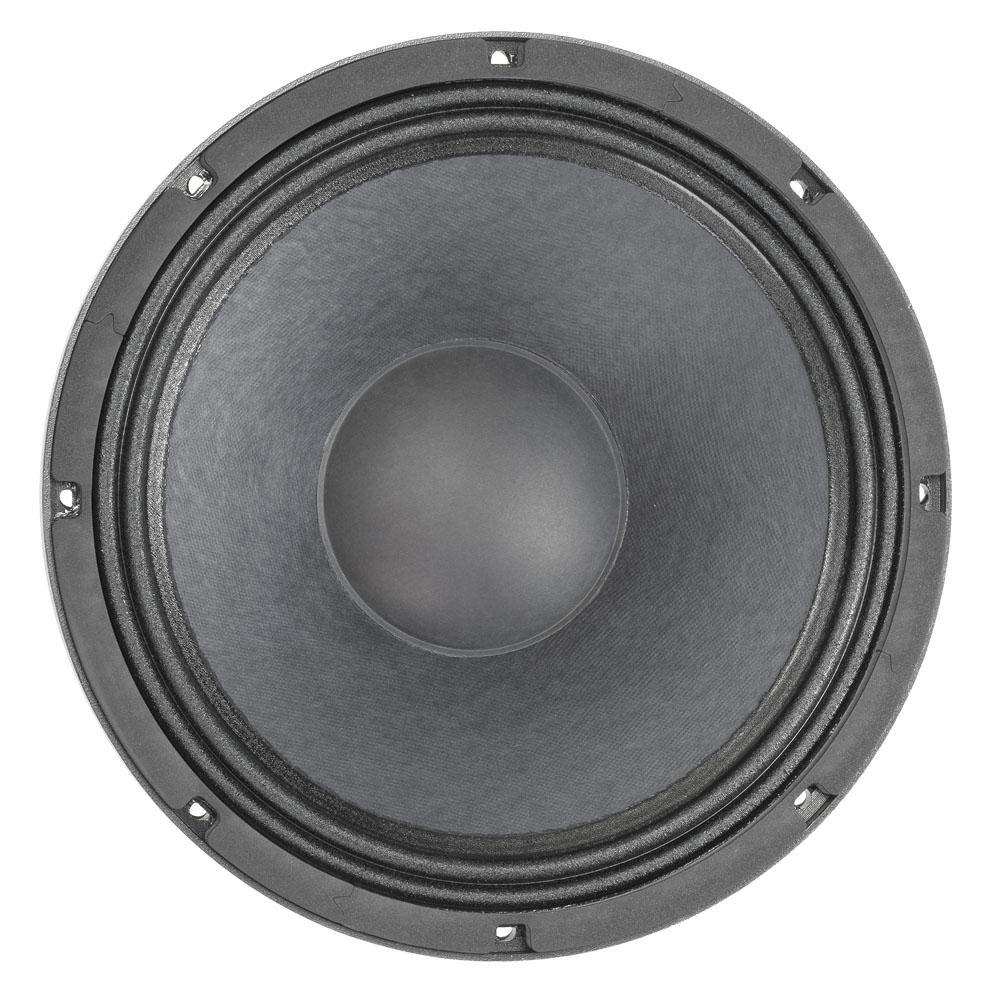

Delta Pro 12 A
12" Speaker 400 W 8 Ohm - die-cast Basket
Item no.: EDP12A
Guarantee: 24 months
EAN: 4049521025266
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
DELTA PRO Series 400W
Recommended for professional audio in both sealed and vented enclosures. Ideal for full-range, mid/hi, and monitor wedges.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
2.5 "
Voice Coil
63.5 mm
Overall diameter
314.5 mm
Pitch Circle Diameter
293.8 mm
Cut- out Measurement
281 mm
Diameter of fixing holes
6.9 mm
Depth
158 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
99.2 dB
Frequency response
52 - 4500 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
9.63 mm
Fs (Resonance Frequency)
51 Hz
Re (DC resistance)
5.71 Ohm(s)
Qms (mechanical quality)
7.56
Le (inductance of the voice coil)
0.84 mH
Qes (electrical quality)
0.37
Qts (overall quality)
0.35
Vas (equivalent volume)
81.7
Mms (moving mass)
48 g
BL (power factor)
15.3 T/m
Xmax (maximum displacement)
4.6 mm
Cms (elasticity of the suspension)
0.21 mm/N
Sd (membrane area)
532.4 cm²
Weight
7,749 kg
