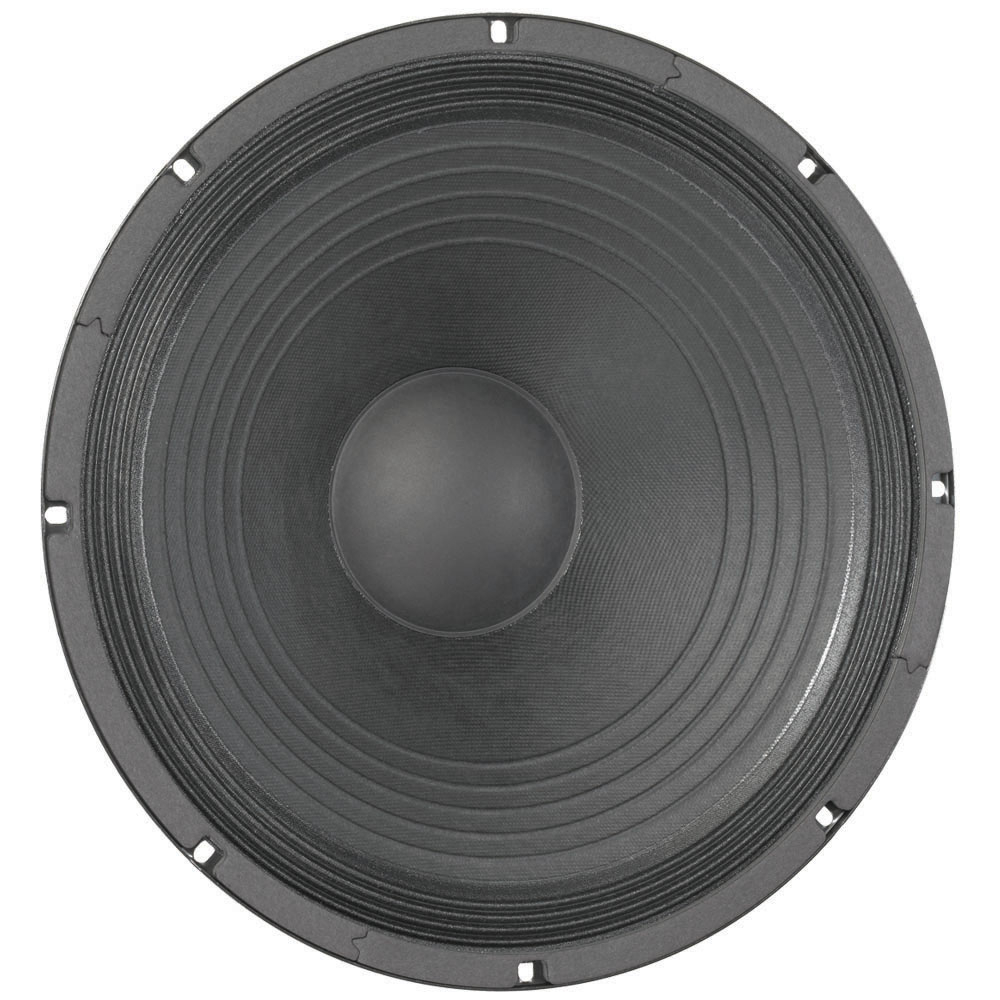

Delta 15 B
15" Speaker 400 W 16 Ohms
Item no.: ED15B
Guarantee: 24 months
EAN: 4049521067693
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional audio as a mid-bass or vocal wedge in a sealed enclosure. Also suitable as a mid-bass or woofer in vented enclosures.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
2.5 "
Voice Coil
63.5 mm
Overall diameter
384.8 mm
Pitch Circle Diameter
369.9 mm
Cut- out Measurement
352.3 mm
Diameter of fixing holes
6.4 mm
Depth
154 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
100 dB
Frequency response
64 - 4000 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Fs (Resonance Frequency)
45 Hz
Re (DC resistance)
11.3 Ohm(s)
Qms (mechanical quality)
6.54
Le (inductance of the voice coil)
1.35 mH
Qes (electrical quality)
0.67
Qts (overall quality)
0.61
Vas (equivalent volume)
204
Mms (moving mass)
64 g
BL (power factor)
17.6 T/m
Xmax (maximum displacement)
1.6 mm
Cms (elasticity of the suspension)
0.19 mm/N
Sd (membrane area)
856.3 cm²
Weight
6,168 kg
