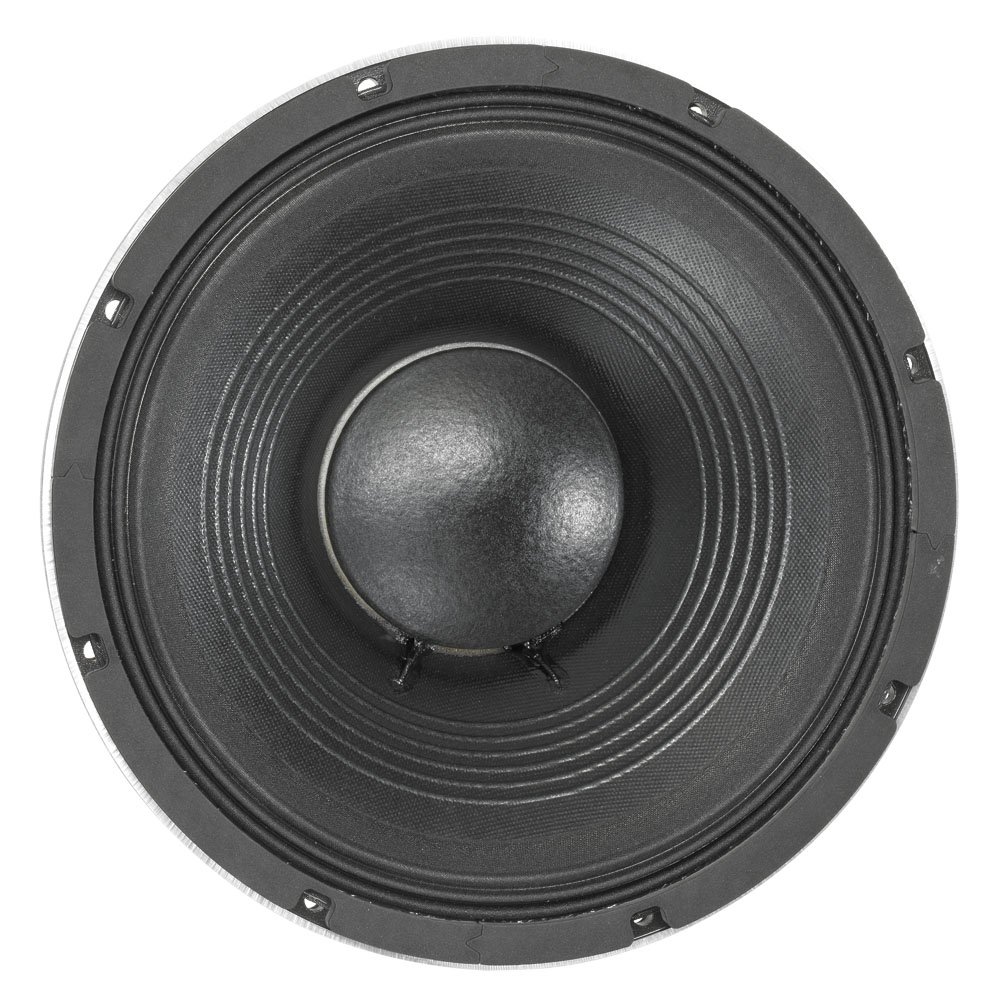

Definimax 4012 HO
12" Speaker 600 W 8 Ohm - die-cast Basket
Item no.: EDM4012HOA
Guarantee: 24 months
EAN: 4049521025235
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
DEFINIMAX™ 4012HO Professional Series
Recommended for professional audio in both sealed and vented enclosures as a low distortion mid-bass or woofer.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
4 "
Voice Coil
101.6 mm
Overall diameter
314.3 mm
Pitch Circle Diameter
294.3 mm
Cut- out Measurement
281 mm
Diameter of fixing holes
7 mm
Depth
135 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
600 W
maximum rated load
1200 W
Sensitivity (1 W / 1 m)
94 dB
Frequency response
49 - 2500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Fs (Resonance Frequency)
46 Hz
Re (DC resistance)
5.85 Ohm(s)
Qms (mechanical quality)
5.74
Le (inductance of the voice coil)
1.17 mH
Qes (electrical quality)
0.38
Qts (overall quality)
0.35
Vas (equivalent volume)
59.4
Mms (moving mass)
86 g
BL (power factor)
19.6 T/m
Xmax (maximum displacement)
6.2 mm
Cms (elasticity of the suspension)
0.14 mm/N
Sd (membrane area)
552 cm²
Weight
11,25 kg
