Canis Major

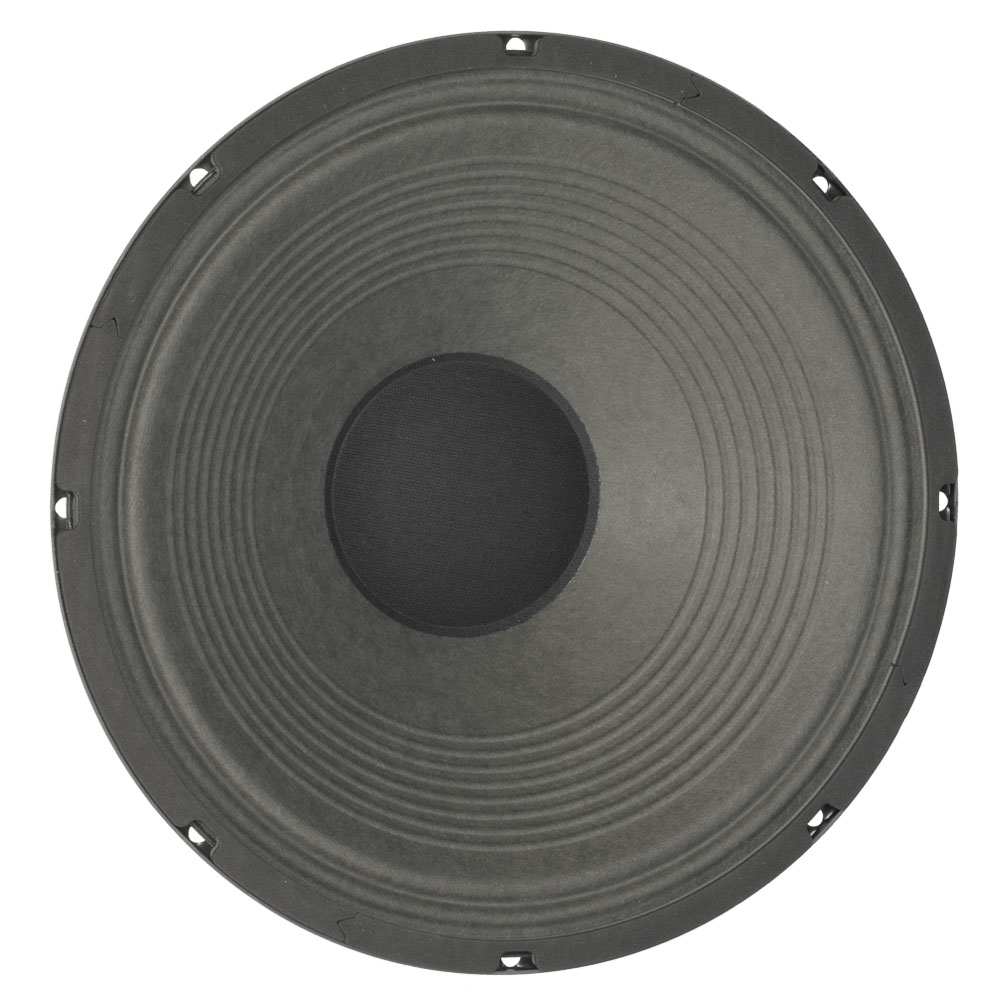

12" Speaker 50 W 8 Ohms
Item no.: EPCANISA
Guarantee: 24 months
EAN: 4049521074486
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition.
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 Inch
Nominal Diameter
305 mm
Voice Coil
1.75 Inch
Voice Coil
44.5 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
157.5
Nominal Impedance
8
Nominal Load Capacity
50 W
Sensitivity (1 W / 1 m)
102 dB
Frequency response
70 Hz - 4000 Hz
Voice Coil Material
copper
Magnet
Alnico
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
104.86 Hz
Re (DC resistance)
6.45 Ω
Qms (mechanical quality)
10.16
Le (inductance of the voice coil)
0.61 MH
Qes (electrical quality)
0.71
Qts (overall quality)
0.66
Vas (equivalent volume)
34.08
Mms (moving mass)
26.6 g
BL (power factor)
12.6 T/M
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.09 MM/N
Sd (membrane area)
532.4 CM²
