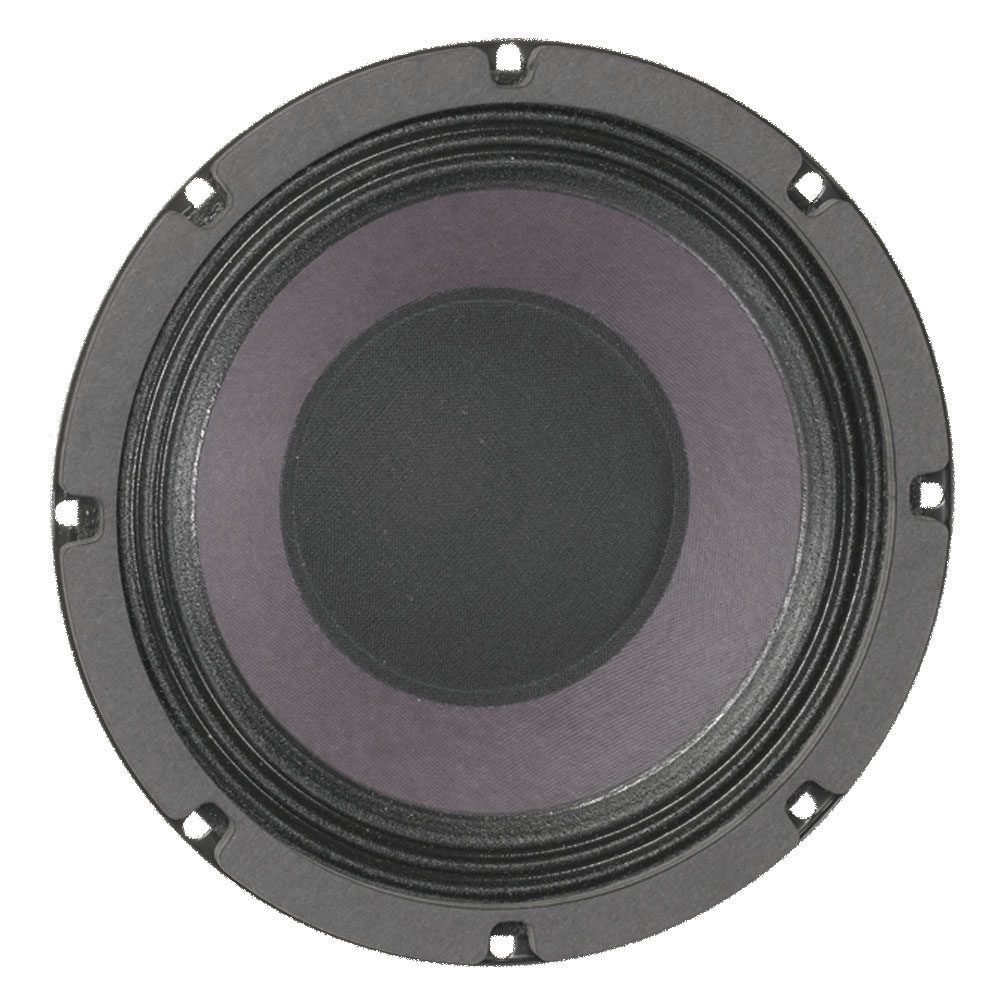

Beta 8 CXA
8" Speaker 250 W 8 Ohms
Item no.: EB8CXA
Guarantee: 24 months
EAN: 4049521024917
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional audio mid-range reproduction in sealed enclosures. Also suitable for mid-bass or floor monitor applications in vented 2-way cabinets.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
254 mm
Voice Coil
2 Inch
Voice Coil
50.8 mm
Overall diameter
256.1 mm
Pitch Circle Diameter
196.9 mm
Cut- out Measurement
229.7 mm
Diameter of fixing holes
6.4 mm
Depth
101
Nominal Impedance
8
Nominal Load Capacity
250 W
maximum rated load
500 W
Sensitivity (1 W / 1 m)
95.1 dB
Frequency response
58 Hz - 20000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
48 Hz
Re (DC resistance)
5.53 Ω
Qms (mechanical quality)
5.21
Le (inductance of the voice coil)
0.75 MH
Qes (electrical quality)
0.43
Qts (overall quality)
0.39
Vas (equivalent volume)
64.2
Mms (moving mass)
27 g
BL (power factor)
10.4 T/M
Xmax (maximum displacement)
5 mm
Cms (elasticity of the suspension)
0.39 MM/N
Sd (membrane area)
344.9 CM²
