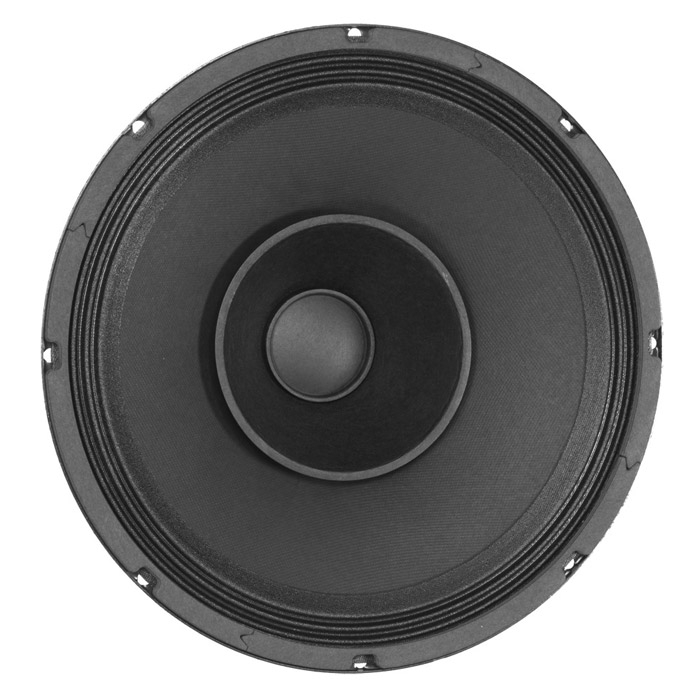

Beta 12 LTB
12" Speaker 250 W 16 Ohms
Item no.: EB12LTB
Guarantee: 24 months
EAN: 4049521101700
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional audio as a woofer in small sealed monitor, or as a PA woofer or monitor in a vented enclosure.
Specifications
Product type
Loudspeaker Chassis
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
305.5 mm
Pitch Circle Diameter
294.3 mm
Cut- out Measurement
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
114 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
225 W
maximum rated load
450 W
Sensitivity (1 W / 1 m)
97.7 dB
Frequency response
48 - 8000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
45 Hz
Re (DC resistance)
7.37 Ohm(s)
Qms (mechanical quality)
6.44
Le (inductance of the voice coil)
0.83 mH
Qes (electrical quality)
0.55
Qts (overall quality)
0.51
Vas (equivalent volume)
136.3
Mms (moving mass)
36 g
BL (power factor)
11.7 T/m
Xmax (maximum displacement)
3.2 mm
Cms (elasticity of the suspension)
0.34 mm/N
Sd (membrane area)
532.4 cm²
Weight
4,05 kg
