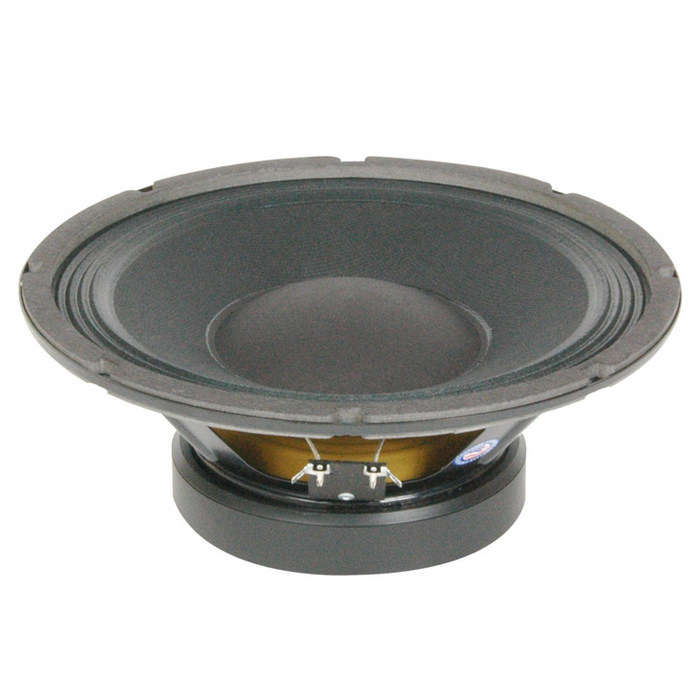

Beta 10 B
10" Speaker 250 W 16 Ohms
Item no.: EB10B
Guarantee: 24 months
EAN: 4049521078217
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures.Also works well as a mid-bass or woofer in vented enclosures.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 "
Nominal Diameter
254 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Cut- out Measurement
231.8 mm
Diameter of fixing holes
5.7 mm
Depth
101 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
250 W
maximum rated load
500 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
51 - 3800 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
53 Hz
Re (DC resistance)
5.75 Ohm(s)
Qms (mechanical quality)
8.14
Le (inductance of the voice coil)
0.67 mH
Qes (electrical quality)
0.52
Qts (overall quality)
0.49
Vas (equivalent volume)
60.1
Mms (moving mass)
25 g
BL (power factor)
9.6 T/m
Xmax (maximum displacement)
3 mm
Cms (elasticity of the suspension)
0.36 mm/N
Sd (membrane area)
344.9 cm²
Weight
3,54 kg
