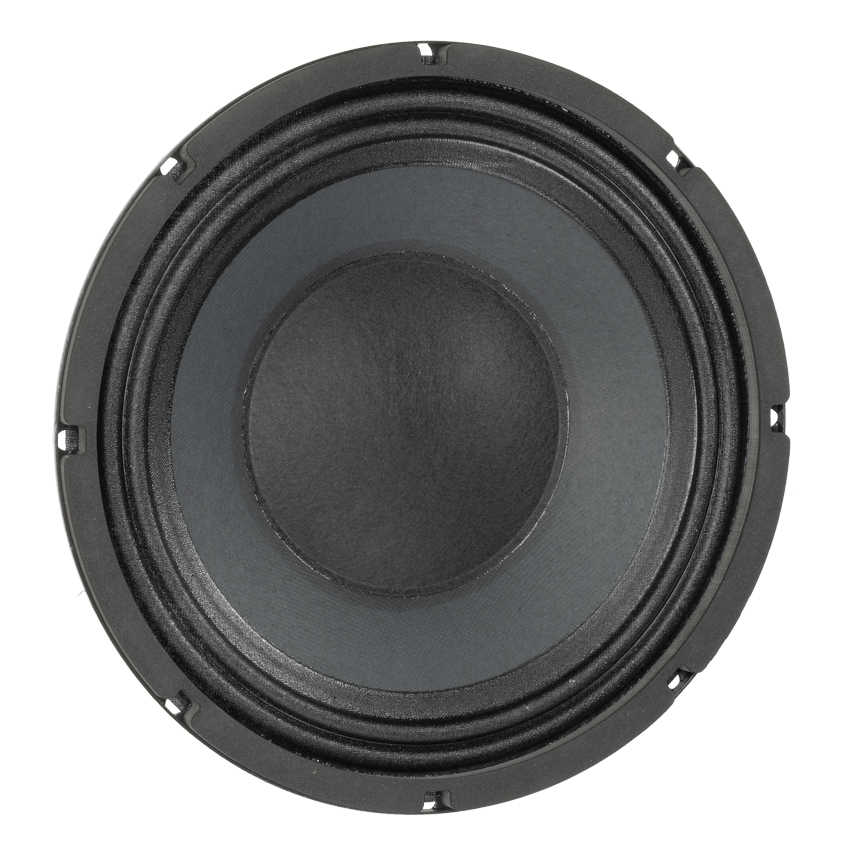

Basslite S 2010
10" Speaker 150 W 8 Ohms
Item no.: EBLS2010A
Guarantee: 24 months
EAN: 4049521024986
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Eminence Basslite S2010 10" 150W 8 Ohm
Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures.
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
10 "
Nominal Diameter
254 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
256 mm
Pitch Circle Diameter
245.4 mm
Cut- out Measurement
229.9 mm
Diameter of fixing holes
6.4 mm
Depth
108 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
150 W
maximum rated load
300 W
Sensitivity (1 W / 1 m)
96.2 dB
Frequency response
54 - 4000 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
7.2 mm
Fs (Resonance Frequency)
46 Hz
Re (DC resistance)
5.02 Ohm(s)
Qms (mechanical quality)
4.16
Le (inductance of the voice coil)
0.47 mH
Qes (electrical quality)
0.34
Qts (overall quality)
0.31
Vas (equivalent volume)
63.4
Mms (moving mass)
33 g
BL (power factor)
11.9 T/m
Xmax (maximum displacement)
4 mm
Cms (elasticity of the suspension)
0.36 mm/N
Sd (membrane area)
350.1 cm²
Weight
1,906 kg
