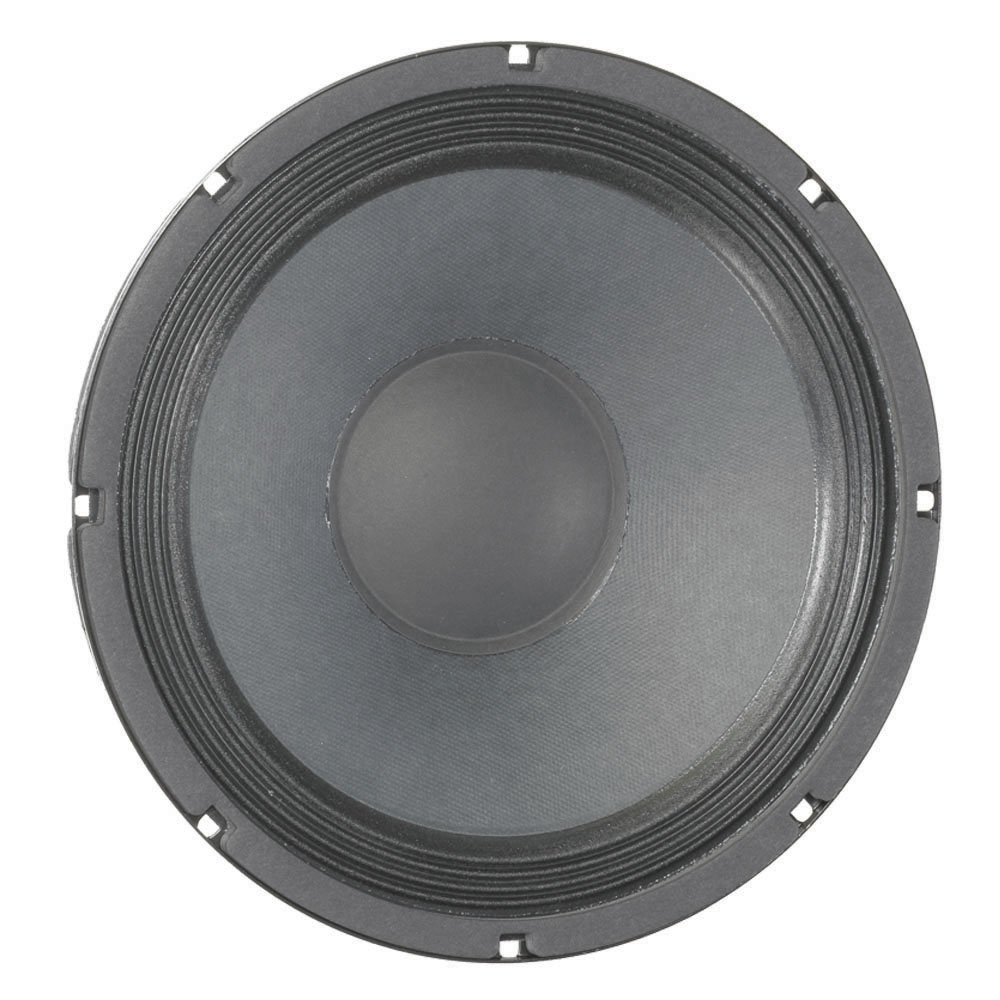

Alpha 10 A
10" Speaker 150 W 8 Ohms
Item no.: EA10A
Guarantee: 24 months
EAN: 4049521024641
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional audio mid-bass applications in a small sealed cabinet.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 "
Nominal Diameter
254 mm
Voice Coil
1.5 "
Voice Coil
38.1 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Cut- out Measurement
231.8 mm
Diameter of fixing holes
5.7 mm
Depth
99 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
150 W
maximum rated load
300 W
Sensitivity (1 W / 1 m)
95.6 dB
Frequency response
57 - 4500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
6.35 mm
Fs (Resonance Frequency)
50 Hz
Re (DC resistance)
5.31 Ohm(s)
Qms (mechanical quality)
5.21
Le (inductance of the voice coil)
0.66 mH
Qes (electrical quality)
0.66
Qts (overall quality)
0.59
Vas (equivalent volume)
82.2
Mms (moving mass)
22 g
BL (power factor)
7.5 T/m
Xmax (maximum displacement)
3.2 mm
Cms (elasticity of the suspension)
0.46 mm/N
Sd (membrane area)
355.4 cm²
Weight
2,335 kg
