8 N 515 L

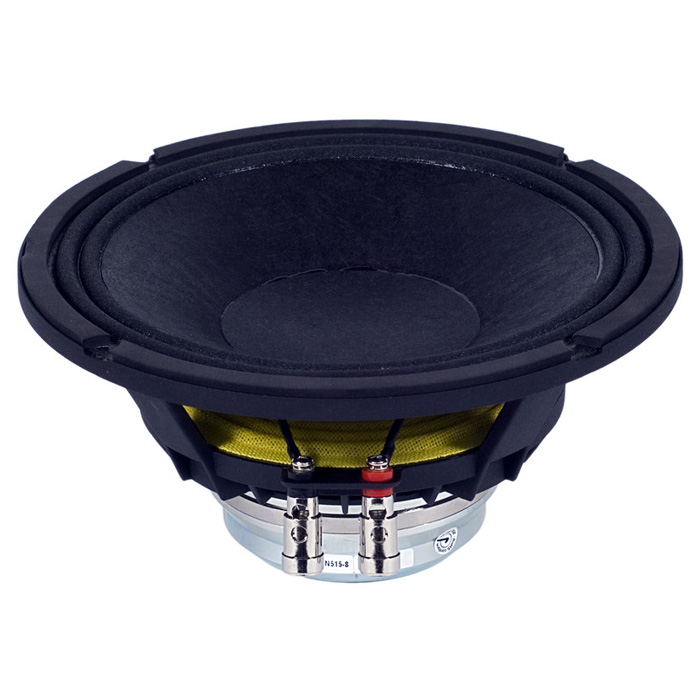

8" Neodymium Bass Midrange Speaker 200 W 8 Ohms
Item no.: BMS8N515L
Guarantee: 24 months
EAN: 4049521023538
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
8" Neodymium Bass Midrange Speaker 200 W 8 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 Inch
Nominal Diameter
203 mm
Voice Coil
2 Inch
Voice Coil
52 mm
Overall diameter
205 mm
Pitch Circle Diameter
195 mm - 197 mm
Cut- out Measurement
182 mm
Mounting holes
4
Diameter of fixing holes
6 x 6.5 mm
Depth
102
Nominal Impedance
8
Nominal Load Capacity
200 W
maximum rated load
400 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
80 Hz - 3000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
7 mm
Fs (Resonance Frequency)
87.7 Hz
Re (DC resistance)
5.4 Ω
Qms (mechanical quality)
4.34
Le (inductance of the voice coil)
0.2 MH
Qes (electrical quality)
0.32
Qts (overall quality)
0.3
Vas (equivalent volume)
11.04
Mms (moving mass)
20.7 g
BL (power factor)
13.8 T/M
Xmax (maximum displacement)
± 4 mm
Cms (elasticity of the suspension)
0.16 MM/N
Sd (membrane area)
222 CM²
