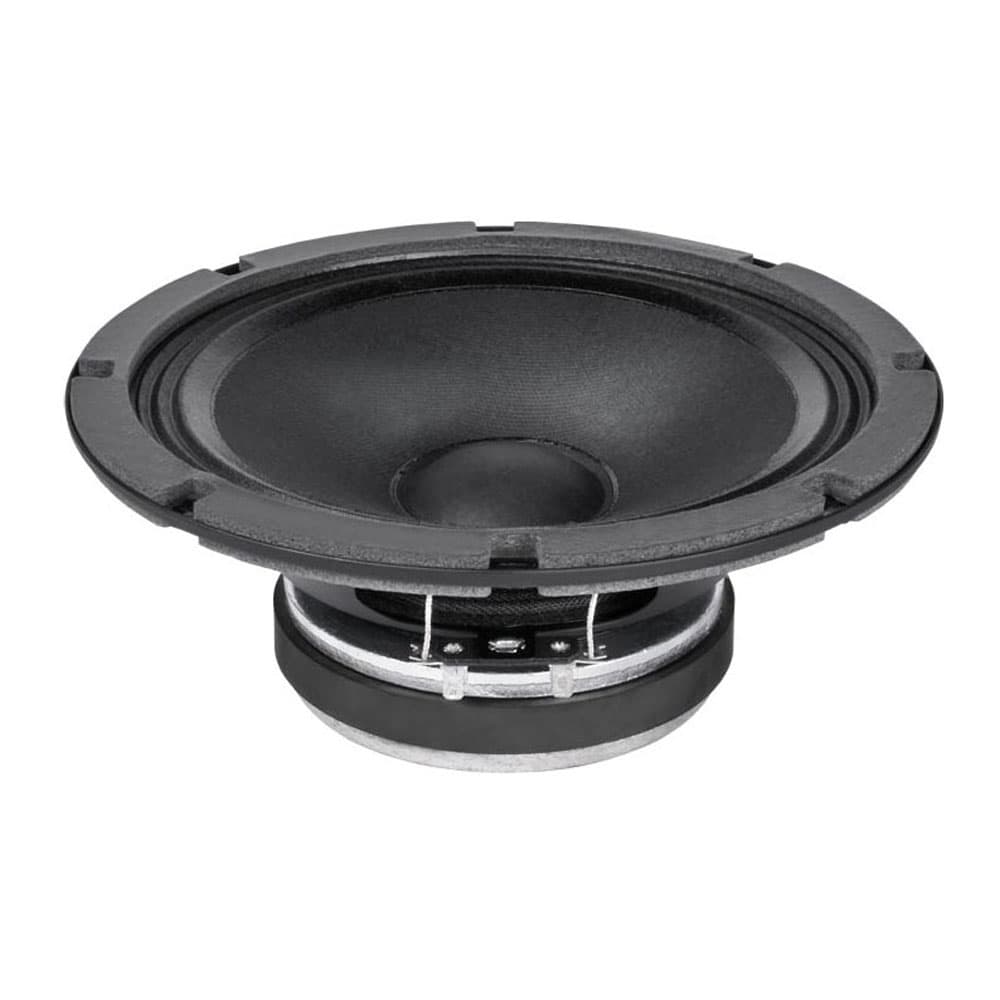

8 FE 200 C
8" Speaker 130 W 4 Ohms
Item no.: FP8FE200C
Guarantee: 24 months
EAN: 4049521203435
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Fe
Item highlights:
8" Speaker 130 W 4 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 "
Nominal Diameter
200 mm
Voice Coil
1.46 "
Voice Coil
37 mm
Overall diameter
209.2 mm
Pitch Circle Diameter
196.9 mm
Cut- out Measurement
178 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
89 mm
Nominal Impedance
4 Ohm(s)
Nominal Load Capacity
130 W
maximum rated load
260 W
Sensitivity (1 W / 1 m)
95 dB
Frequency response
60 - 5000 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
6 mm
Fs (Resonance Frequency)
80 Hz
Re (DC resistance)
3 Ohm(s)
Qms (mechanical quality)
8.7
Le (inductance of the voice coil)
0.25 mH
Qes (electrical quality)
0.47
Qts (overall quality)
0.44
Vas (equivalent volume)
13.4
Mms (moving mass)
15.3 g
BL (power factor)
7 T/m
Xmax (maximum displacement)
4.62 mm
Cms (elasticity of the suspension)
0.26 mm/N
Sd (membrane area)
191 cm²
Rms (mechanical loss resistance)
0.88 kg/s
Weight
2,2 kg
