8 C 250 H

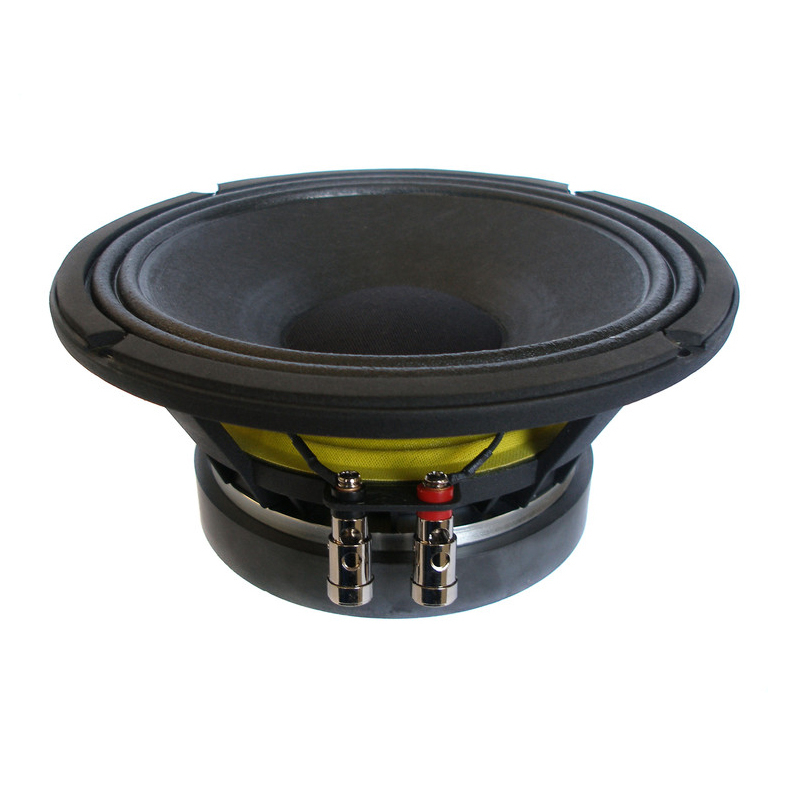

8" Coaxial Speaker 200 W + 80 W 16 Ohms
Item no.: BMS8C250H
Guarantee: 24 months
EAN: 4049521164019
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
8" Coaxial Speaker 200 W + 80 W 16 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
coaxial
Loudspeaker dimensions
8 "
Loudspeaker dimensions (mm)
203 mm
Overall diameter
205 mm
Pitch Circle Diameter
196 mm
Cut- out Measurement
182 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Total depth
111 mm
Weight
3 kg
Nominal impedance
16 Ohm(s)
RMS
200 W
Sensitivity (1 W / 1 m)
93 dB
Frequency response
70 - 20000 Hz
Woofer voice coil (inch)
2 "
Woofer voice coil (mm)
51 mm
Voice Coil Material Woofer
copper
Woofer magnet
Ferrite
Magnetic gap depth Woofer
6.5 mm
Fs (Resonance Frequency)
79.1 Hz
Re (DC resistance)
5.4 Ohm(s)
Qms (mechanical quality)
4.85
Le (inductance of the voice coil)
0.48 mH
Qes (electrical quality)
0.61
Qts (overall quality)
0.52
Vas (equivalent volume)
10.18 l
Mms (moving mass)
18.3 g
BL (power factor)
9.95 T/m
Xmax (maximum displacement)
4.25 mm
Cms (elasticity of the suspension)
0.18 mm/N
Sd (membrane area)
201 cm²
HF driver voice coil
1.75 "
HF driver voice coil (mm)
44.4 mm
Nominal Impedance HF driver
8 Ohm(s)
Nominal Load HF driver
80 W
Maximum Load HF driver
300 W
Sensitivity HF driver (1 W / 1 m)
109 dB
Frequency range HF driver
1000 - 20000 Hz
recommended crossover frequency HF driver
1500 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
Dispersion (H x V)
90 °
