6 PR 122 A

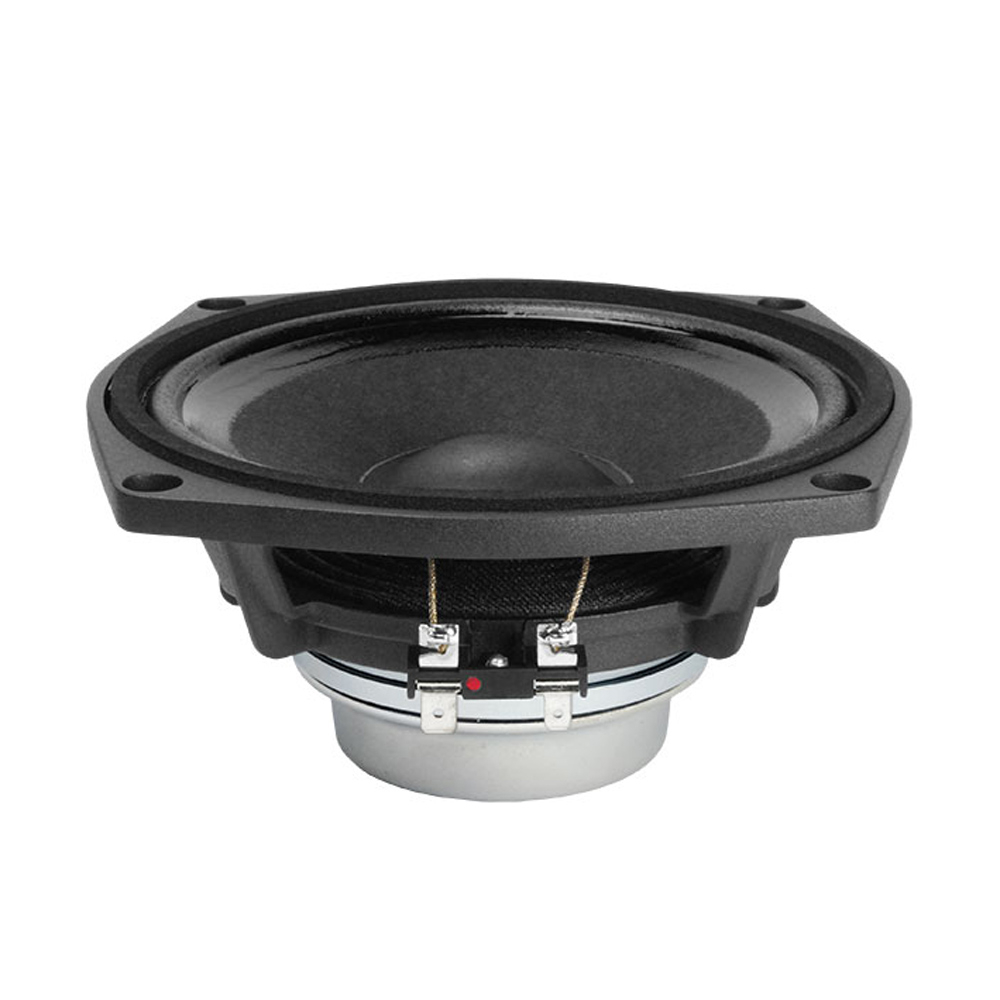

6" Speaker 120 W 8 Ohm
Item no.: FP6PR122A
Guarantee: 24 months
EAN: 4049521165306
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
6" Speaker 120 W 8 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
6 "
Nominal Diameter
160 mm
Voice Coil
1.46 "
Voice Coil
37 mm
Overall diameter
187 mm
Pitch Circle Diameter
172 mm
Cut- out Measurement
147 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Depth
78 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
240 W
maximum rated load
120 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
125 - 10000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
6 mm
Fs (Resonance Frequency)
110 Hz
Re (DC resistance)
6 Ohm(s)
Qms (mechanical quality)
3.3
Le (inductance of the voice coil)
0.15 mH
Qes (electrical quality)
0.44
Qts (overall quality)
0.39
Vas (equivalent volume)
4.2
Mms (moving mass)
11.7 g
BL (power factor)
10.5 T/m
Xmax (maximum displacement)
2.75 mm
Cms (elasticity of the suspension)
0.18 mm/N
Sd (membrane area)
129 cm²
Rms (mechanical loss resistance)
2.42 kg/s
Weight
1,3 kg
