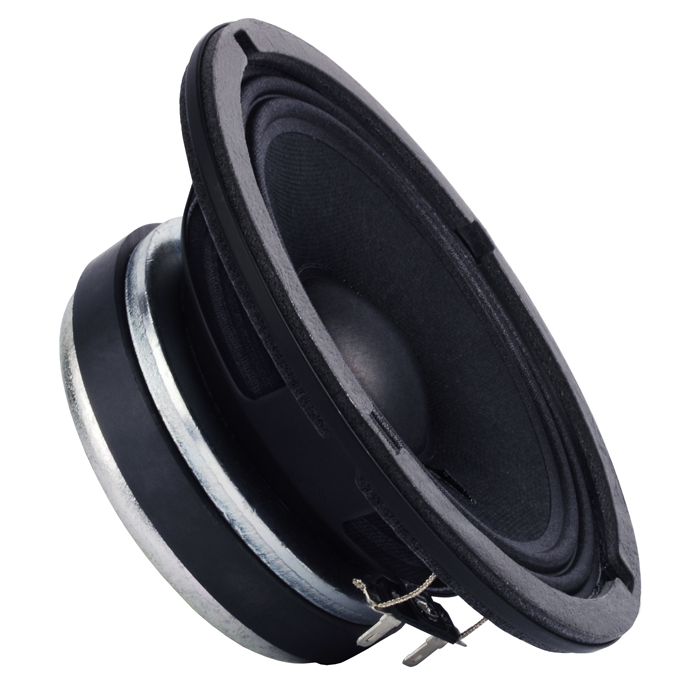

6 FE 200 A
6" Speaker 130 W 8 Ohms
Item no.: FP6FE200A
Guarantee: 24 months
EAN: 4049521112683
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Fe
Item highlights:
6" Speaker 130 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
6 Inch
Nominal Diameter
160 mm
Voice Coil
1.46 Inch
Voice Coil
37 mm
Overall diameter
167.4 mm
Pitch Circle Diameter
154 mm
Cut- out Measurement
144 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Depth
77
Nominal Impedance
8
Nominal Load Capacity
130 W
maximum rated load
260 W
Sensitivity (1 W / 1 m)
95 dB
Frequency response
85 Hz - 6000 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
120 Hz
Re (DC resistance)
5.9 Ω
Qms (mechanical quality)
7.3
Le (inductance of the voice coil)
0.4 MH
Qes (electrical quality)
0.5
Qts (overall quality)
0.47
Vas (equivalent volume)
3.56
Mms (moving mass)
11 g
BL (power factor)
8.2 T/M
Xmax (maximum displacement)
4.67 mm
Cms (elasticity of the suspension)
0.18 MM/N
Sd (membrane area)
118 CM²
Rms (mechanical loss resistance)
1 KG/S
