6 C 150 L

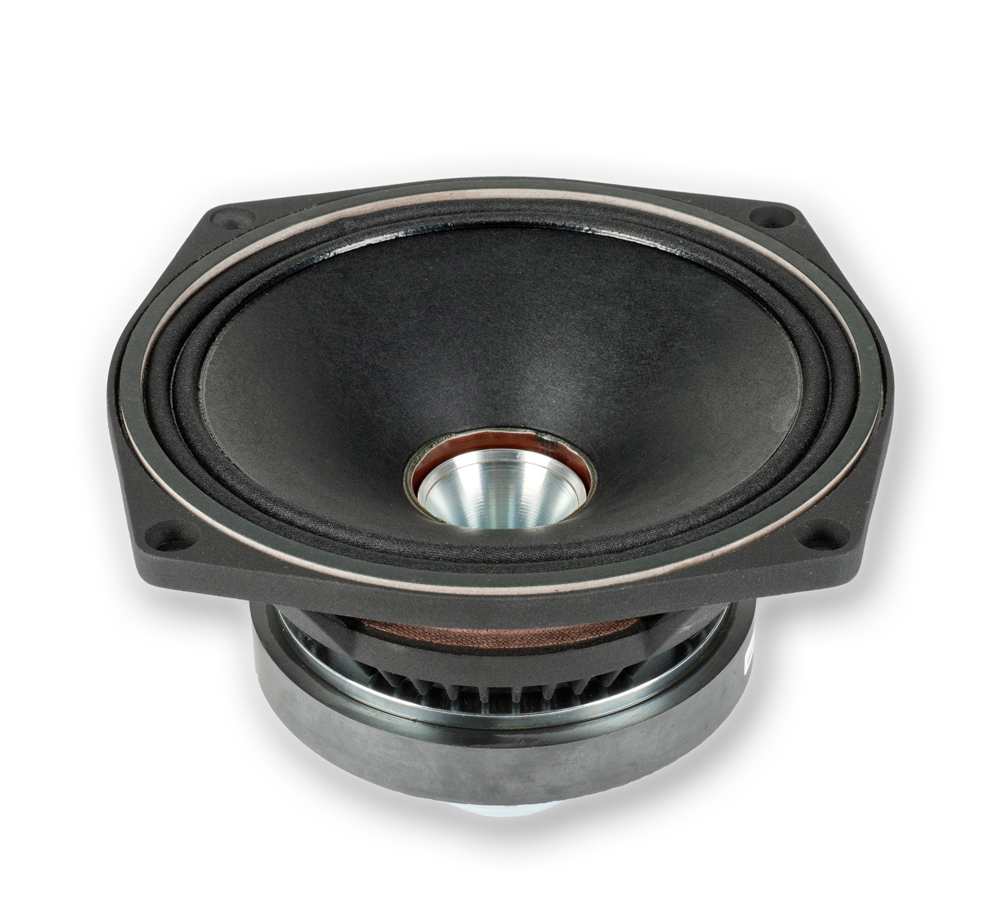

6" Coaxial Speaker 130 W + 25 W 8 Ohms
Item no.: BMS6C150L
Guarantee: 24 months
EAN: 4049521154270
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Item highlights:
6" Coaxial Speaker 130 W + 25 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
6 Inch
Loudspeaker dimensions (mm)
152 mm
Overall diameter
162 x 162 mm
Pitch Circle Diameter
172 mm
Cut- out Measurement
146 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Total depth
109 mm
Nominal impedance
8 Ω
RMS
130 W
Sensitivity (1 W / 1 m)
93 dB
Frequency response
80 Hz - 20000 Hz
Woofer voice coil (inch)
1.5 Inch
Woofer voice coil (mm)
38 mm
Voice Coil Material Woofer
copper
Woofer magnet
Neodymium
Magnetic gap depth Woofer
5 mm
Fs (Resonance Frequency)
88.4 Hz
Re (DC resistance)
11.9 Ω
Qms (mechanical quality)
3.9
Qes (electrical quality)
0.53
Qts (overall quality)
0.46
Vas (equivalent volume)
7.6 l
Mms (moving mass)
10 g
Xmax (maximum displacement)
5 mm
Cms (elasticity of the suspension)
0.31 MM/N
Sd (membrane area)
132 CM²
HF driver voice coil
1 Inch
HF driver voice coil (mm)
25.4 mm
Nominal Impedance HF driver
8 Ω
Nominal Load HF driver
25 W
Maximum Load HF driver
200 W
Sensitivity HF driver (1 W / 1 m)
110 dB
Frequency range HF driver
1200 Hz - 20000 Hz
recommended crossover frequency HF driver
> 1500 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
