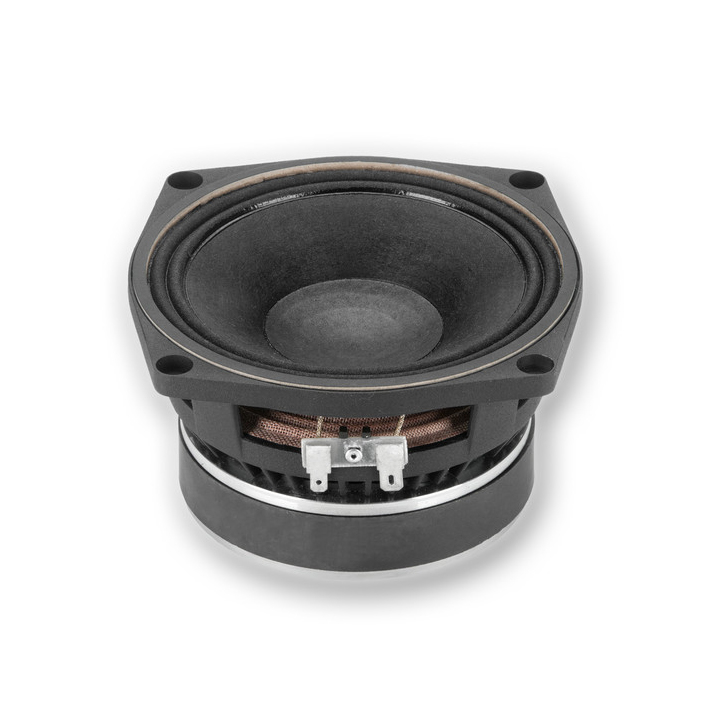

5 S 117 L
5" Bass Midrange Speaker 130 W 8 Ohms
Item no.: BMS5S117L
Guarantee: 24 months
EAN: 4049521136276
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Item highlights:
5" Bass Midrange Speaker 130 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
5 "
Nominal Diameter
130 mm
Voice Coil
1.5 "
Voice Coil
38 mm
Overall diameter
128 mm
Pitch Circle Diameter
139 mm
Cut- out Measurement
117 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Depth
66.5 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
130 W
maximum rated load
260 W
Sensitivity (1 W / 1 m)
91 dB
Frequency response
80 - 4000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
5 mm
Fs (Resonance Frequency)
95 Hz
Re (DC resistance)
11.4 Ohm(s)
Qms (mechanical quality)
3.3
Le (inductance of the voice coil)
0.58 mH
Qes (electrical quality)
0.49
Qts (overall quality)
0.42
Vas (equivalent volume)
3.25
Mms (moving mass)
8.3 g
BL (power factor)
11.3 T/m
Xmax (maximum displacement)
± 5 mm
Cms (elasticity of the suspension)
0.31 mm/N
Sd (membrane area)
850 cm²
Weight
1,56 kg
