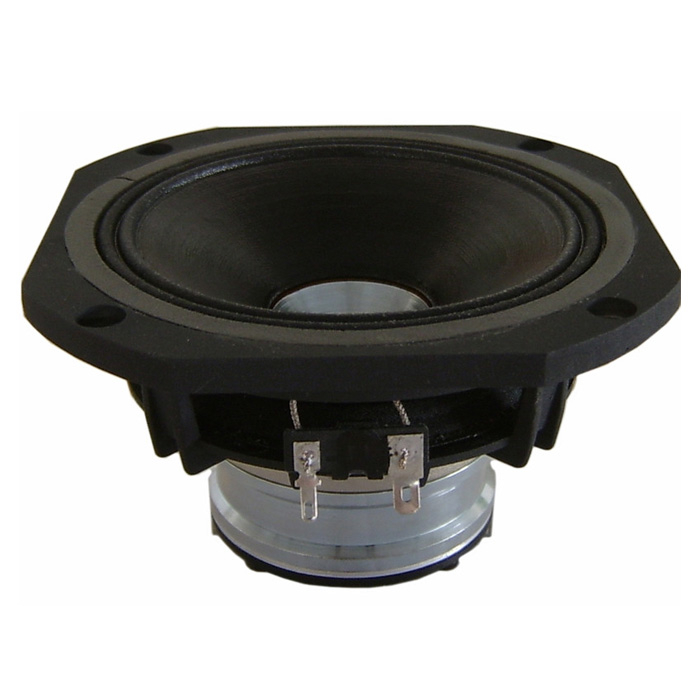

5 CN 140 L
5" Neodymium Coaxial Speaker 130 W + 60 W 8 Ohms
Item no.: BMS5CN140L
Guarantee: 24 months
EAN: 4049521023460
Sliding scale: 4
Unit: Piece
Packaging unit: 4
Item highlights:
5" Neodymium Coaxial Speaker 130 W + 60 W 8 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
5 Inch
Loudspeaker dimensions (mm)
130 mm
Overall diameter
135 mm
Pitch Circle Diameter
139 mm
Cut- out Measurement
117 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Total depth
82 mm
Nominal impedance
8 Ω
RMS
120 W
Sensitivity (1 W / 1 m)
91 dB
Frequency response
80 Hz - 20,000 Hz
Woofer voice coil (inch)
1.5 Inch
Woofer voice coil (mm)
38 mm
Voice Coil Material Woofer
copper
Woofer magnet
Neodymium
Magnetic gap depth Woofer
5 mm
Fs (Resonance Frequency)
138 Hz
Re (DC resistance)
12.2 Ω
Qms (mechanical quality)
3.4
Le (inductance of the voice coil)
0.29 MH
Qes (electrical quality)
0.87
Qts (overall quality)
0.69
Vas (equivalent volume)
1.03 l
Mms (moving mass)
9 g
BL (power factor)
10.7 T/M
Xmax (maximum displacement)
3.5 mm
Cms (elasticity of the suspension)
0.14 MM/N
Sd (membrane area)
74 CM²
HF driver voice coil
1.5 Inch
HF driver voice coil (mm)
38 mm
Nominal Impedance HF driver
8 Ω
Nominal Load HF driver
60 W
Maximum Load HF driver
300 W
Sensitivity HF driver (1 W / 1 m)
113 dB
Frequency range HF driver
1.500 Hz - 20,000 Hz
recommended crossover frequency HF driver
1.900 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
Dispersion (H x V)
90 °
