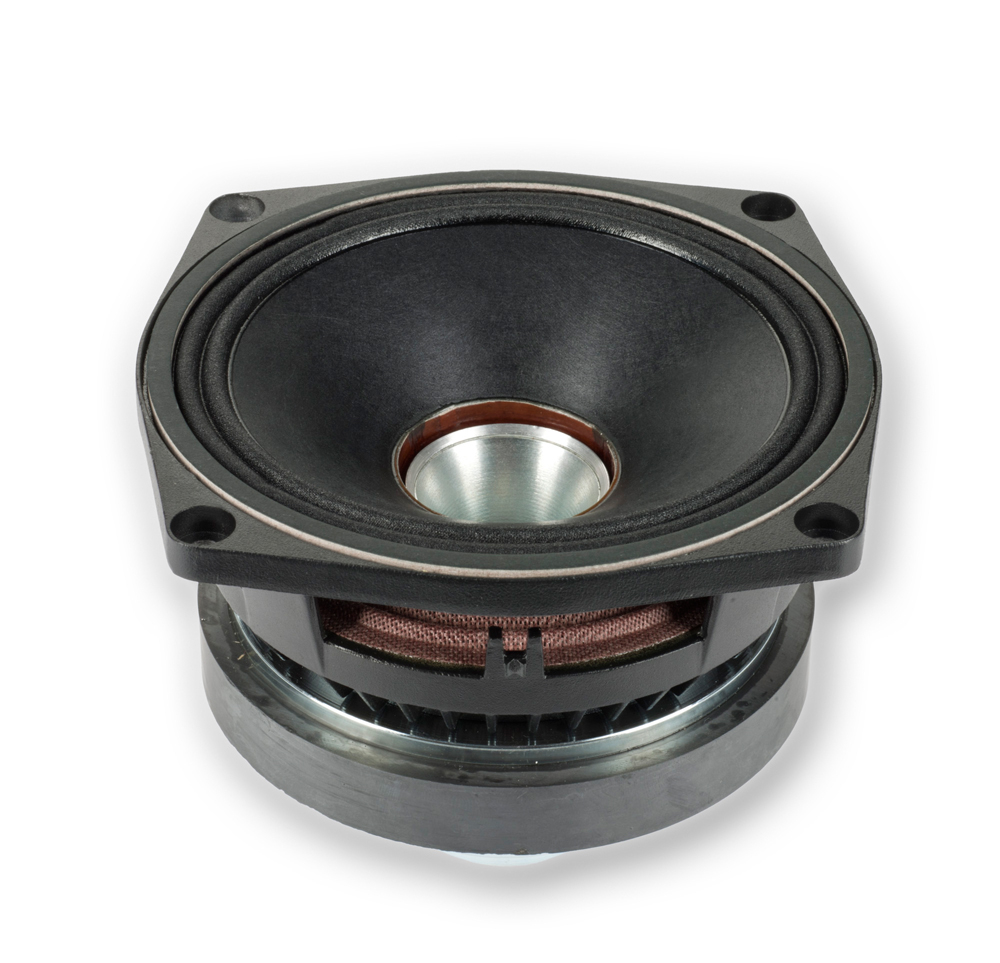

5 C 150 LH
5" Coaxial Speaker 130 W + 25 W 8/16 Ohms
Item no.: BMS5C150LH
Guarantee: 24 months
EAN: 4049521164088
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
5" Coaxial Speaker 130 W + 25 W 8/16 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
5 Inch
Loudspeaker dimensions (mm)
127 mm
Overall diameter
128 x 128 mm
Pitch Circle Diameter
139 mm
Cut- out Measurement
117 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Total depth
102 mm
Nominal impedance
8 + 16 Ω
RMS
130 W
Sensitivity (1 W / 1 m)
90 dB
Frequency response
80 Hz - 20000 Hz
Woofer voice coil (inch)
1.5 Inch
Woofer voice coil (mm)
38 mm
Voice Coil Material Woofer
copper
Woofer magnet
Neodymium
Magnetic gap depth Woofer
5 mm
Fs (Resonance Frequency)
99.4 Hz
Re (DC resistance)
11.9 Ω
Qms (mechanical quality)
3.8
Qes (electrical quality)
0.48
Qts (overall quality)
0.43
Vas (equivalent volume)
2.4 l
Mms (moving mass)
8 g
BL (power factor)
11.4 T/M
Xmax (maximum displacement)
+/- 5 mm
Cms (elasticity of the suspension)
0.3 MM/N
Sd (membrane area)
75 CM²
HF driver voice coil
1 Inch
HF driver voice coil (mm)
25.4 mm
Nominal Impedance HF driver
16 Ω
Nominal Load HF driver
25 W
Maximum Load HF driver
100 W
Sensitivity HF driver (1 W / 1 m)
110 dB
Frequency range HF driver
1200 Hz - 20000 Hz
recommended crossover frequency HF driver
> 1500 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
