18 S 4304 V 2

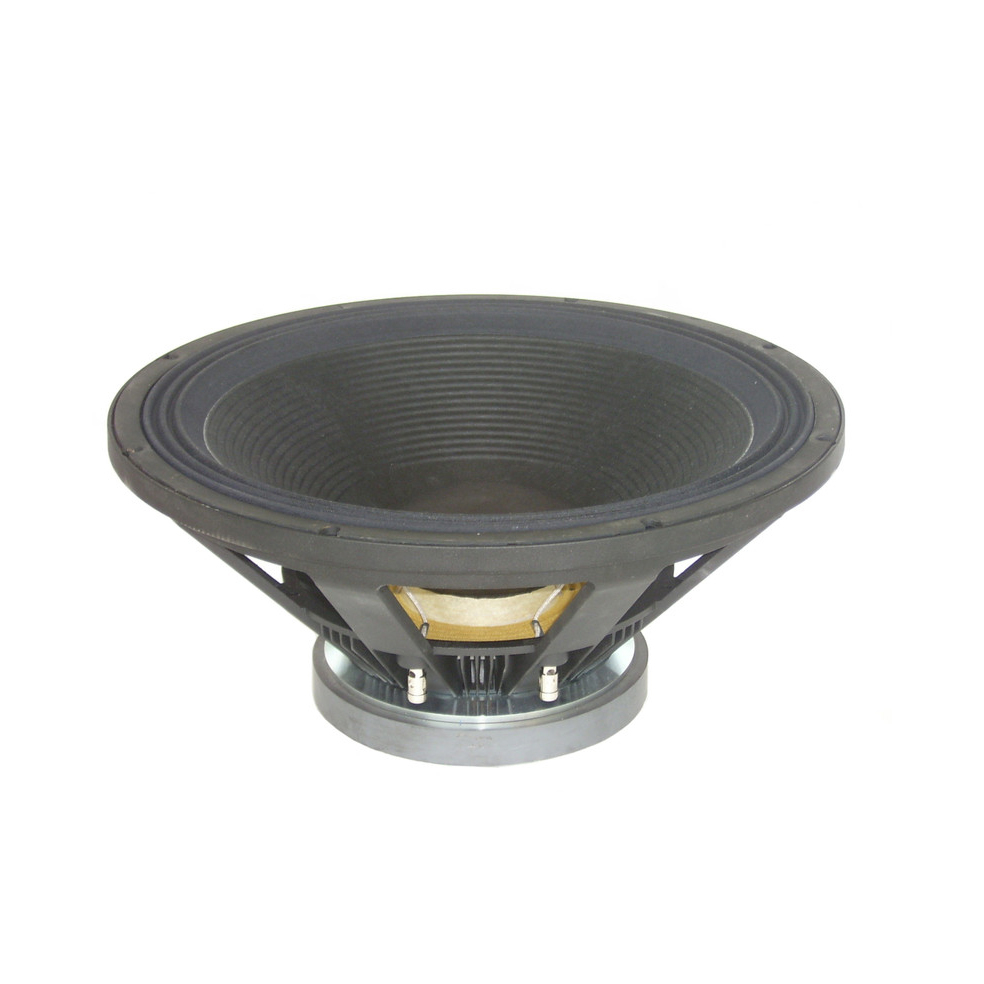

18" Speaker 1200 W 4 Ohms Version 2
Item no.: BMS18S4304V2
Guarantee: 24 months
EAN: 4049521140693
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
18" Speaker 1200 W 4 Ohms Version 2
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
18 "
Nominal Diameter
457.2 mm
Voice Coil
4 "
Voice Coil
101.6 mm
Overall diameter
458 mm
Pitch Circle Diameter
440 mm
Cut- out Measurement
414 mm
Mounting holes
8
Diameter of fixing holes
8.5 mm
Depth
218 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
1200 W
maximum rated load
2400 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
20 - 200 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
10 mm
Fs (Resonance Frequency)
32.9 Hz
Re (DC resistance)
5 Ohm(s)
Qms (mechanical quality)
6.8
Le (inductance of the voice coil)
0.82 mH
Qes (electrical quality)
0.34
Qts (overall quality)
0.33
Vas (equivalent volume)
247
Mms (moving mass)
19.5 g
BL (power factor)
24.26 T/m
Xmax (maximum displacement)
± 7.5 mm
Cms (elasticity of the suspension)
0.12 mm/N
Sd (membrane area)
1213 cm²
Weight
12,85 kg
