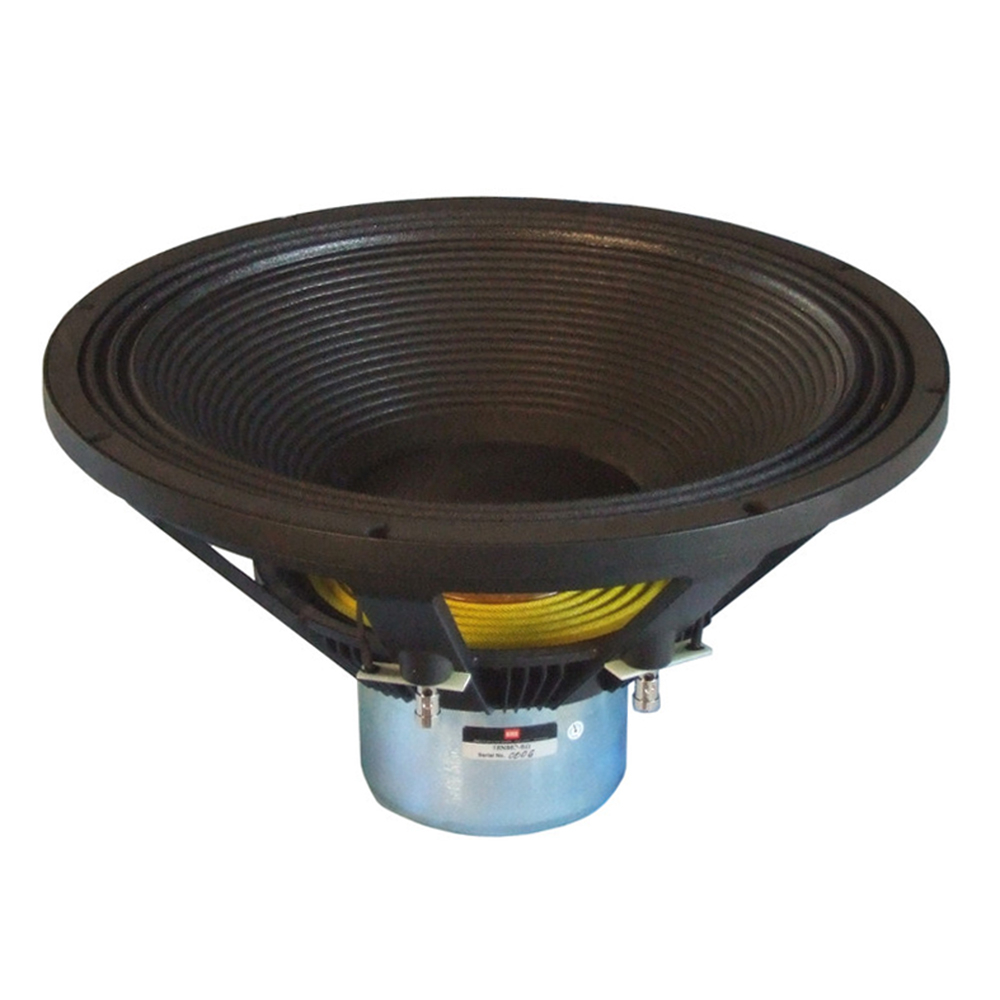

18 N 862 L
18" Neodymium Subwoofer 1500 W 8 Ohms
Item no.: BMS18N862L
Guarantee: 24 months
EAN: 4049521120954
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
18" Neodymium Subwoofer 1500 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
18 "
Nominal Diameter
457.2 mm
Voice Coil
4 "
Voice Coil
101.6 mm
Overall diameter
458 mm
Pitch Circle Diameter
440 mm
Cut- out Measurement
412 mm
Mounting holes
8
Diameter of fixing holes
8.5 mm
Depth
250 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
1500 W
maximum rated load
3000 W
Sensitivity (1 W / 1 m)
95 dB
Frequency response
20 - 200 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
12 mm
Fs (Resonance Frequency)
24.85 Hz
Re (DC resistance)
5.7 Ohm(s)
Qms (mechanical quality)
5.33
Le (inductance of the voice coil)
0.81 mH
Qes (electrical quality)
0.4
Qts (overall quality)
0.37
Vas (equivalent volume)
304
Mms (moving mass)
27.7 g
BL (power factor)
24.93 T/m
Xmax (maximum displacement)
19 mm
Cms (elasticity of the suspension)
0.15 mm/N
Sd (membrane area)
1213 cm²
Weight
9,8 kg
