18 HP 1020 A

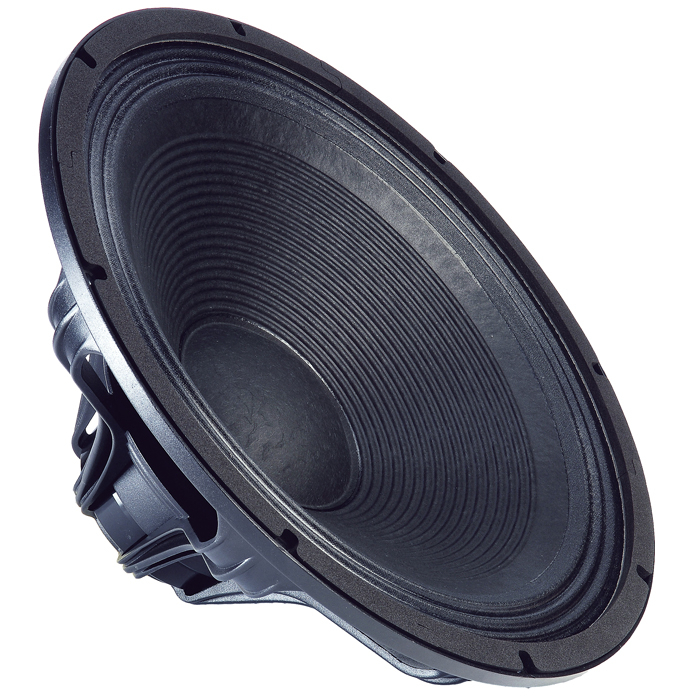

18" Speaker 1000 W 8 Ohms
A new model exists for this item:
Faital Pro
18 HP 1022 A
FP18HP1022A
Item no.: FP18HP1020A
Guarantee: 24 months
EAN: 4049521112614
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:High Performance
Item highlights:
18" Speaker 1000 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
18 Inch
Nominal Diameter
460 mm
Voice Coil
4 Inch
Voice Coil
100 mm
Overall diameter
460 mm
Pitch Circle Diameter
440 mm
Cut- out Measurement
422 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
202
Nominal Impedance
8
Nominal Load Capacity
1000 W
maximum rated load
2000 W
Sensitivity (1 W / 1 m)
99 dB
Frequency response
35 Hz - 1600 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
12 mm
Fs (Resonance Frequency)
35 Hz
Re (DC resistance)
5.4 Ω
Qms (mechanical quality)
9.74
Le (inductance of the voice coil)
1.7 MH
Qes (electrical quality)
0.28
Qts (overall quality)
0.27
Vas (equivalent volume)
207.2
Mms (moving mass)
182 g
BL (power factor)
28 T/M
Xmax (maximum displacement)
9.5 mm
Cms (elasticity of the suspension)
0.11 MM/N
Sd (membrane area)
1134 CM²
Rms (mechanical loss resistance)
4.1 KG/S
