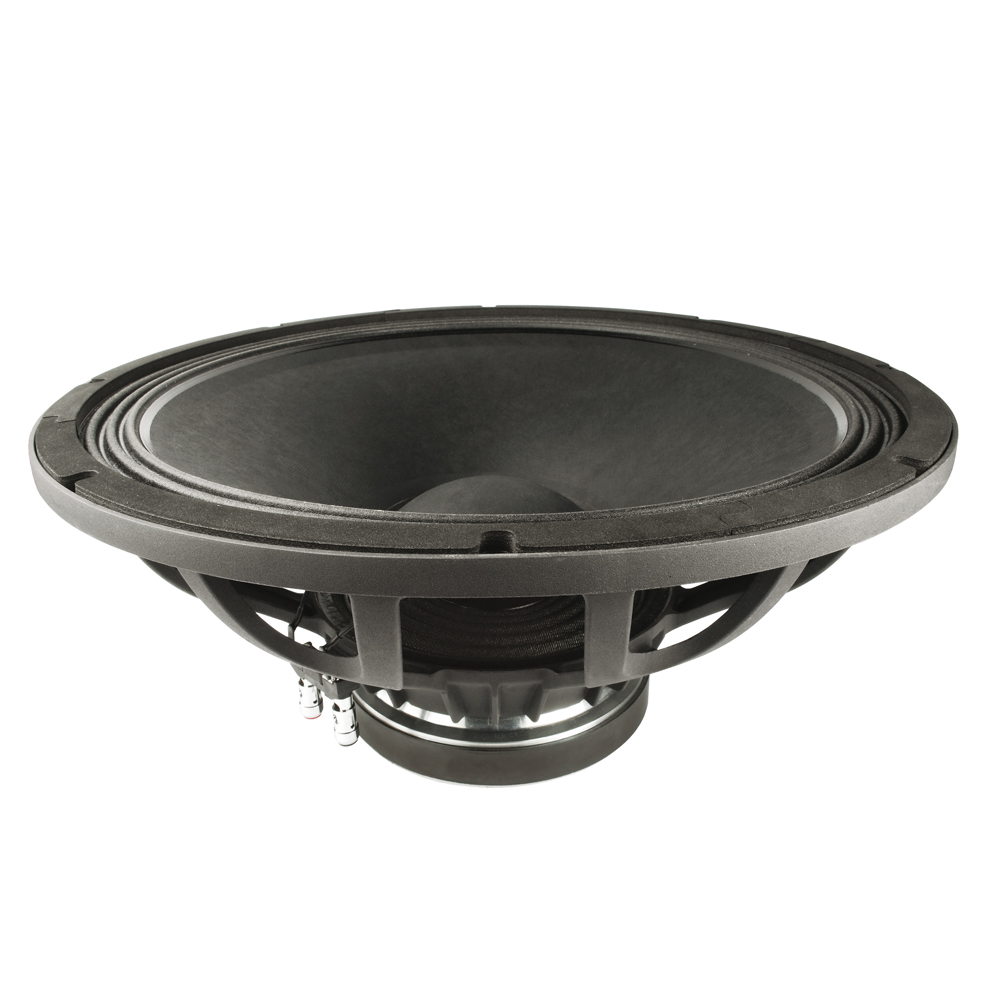

18 FH 510 A
18" Speaker 600 W 8 Ohm - Ferrite
Item no.: FP18FH510A
Guarantee: 24 months
EAN: 4049521133183
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Five Hundred
Item highlights:
18" Speaker 600 W 8 Ohm - Ferrite
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
18 Inch
Nominal Diameter
460 mm
Voice Coil
3 Inch
Voice Coil
77 mm
Overall diameter
460 mm
Pitch Circle Diameter
440 mm
Cut- out Measurement
424 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
201.5
Nominal Impedance
8
Nominal Load Capacity
600 W
maximum rated load
1200 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
30 Hz - 2500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
10.5 mm
Fs (Resonance Frequency)
30 Hz
Re (DC resistance)
5.1 Ω
Qms (mechanical quality)
13.6
Le (inductance of the voice coil)
1.25 MH
Qes (electrical quality)
0.3
Qts (overall quality)
0.3
Vas (equivalent volume)
369.4
Mms (moving mass)
139 g
BL (power factor)
21 T/M
Xmax (maximum displacement)
9.35 mm
Cms (elasticity of the suspension)
0.22 MM/N
Sd (membrane area)
1134 CM²
Rms (mechanical loss resistance)
0.82 KG/S
