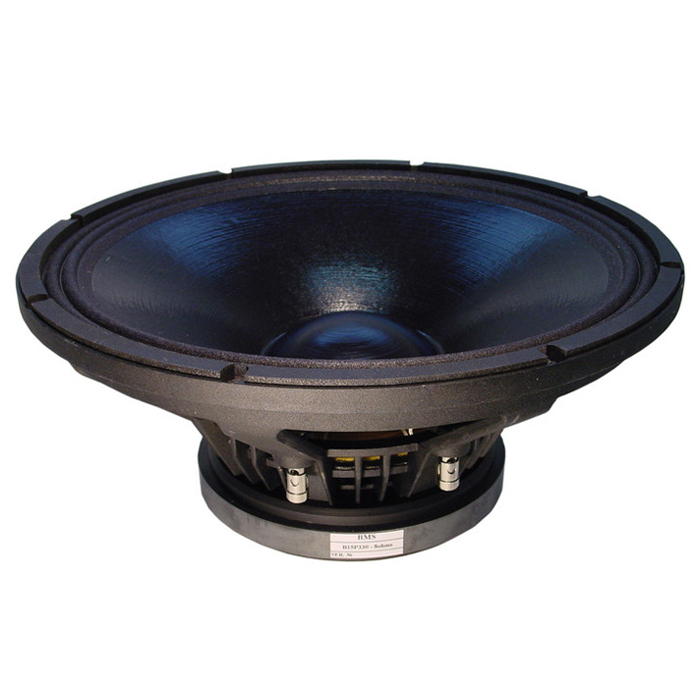

15 S 320 L
15" Bass Midrange Speaker 500 W 8 Ohms
Item no.: BMS15S320L
Guarantee: 24 months
EAN: 4049521022920
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
15" Bass Midrange Speaker 500 W 8 Ohm
Specifications
Type
Low/Mid-Range
Nominal Diameter
15 Inch
Nominal Diameter
381 mm
Voice Coil
3 Inch
Voice Coil
77 mm
Overall diameter
388 mm
Pitch Circle Diameter
371 mm
Cut- out Measurement
358 mm
Mounting holes
8
Diameter of fixing holes
7 x 8 mm
Depth
178
Nominal Impedance
8
Nominal Load Capacity
500 W
maximum rated load
1000 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
40 Hz - 2500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
10 mm
Fs (Resonance Frequency)
41 Hz
Re (DC resistance)
5.7 Ω
Qms (mechanical quality)
5
Le (inductance of the voice coil)
0.8 MH
Qes (electrical quality)
0.29
Qts (overall quality)
0.28
Vas (equivalent volume)
154
Mms (moving mass)
10.9 g
BL (power factor)
23.3 T/M
Xmax (maximum displacement)
± 4.5 mm
Cms (elasticity of the suspension)
0.14 MM/N
Sd (membrane area)
880 CM²
