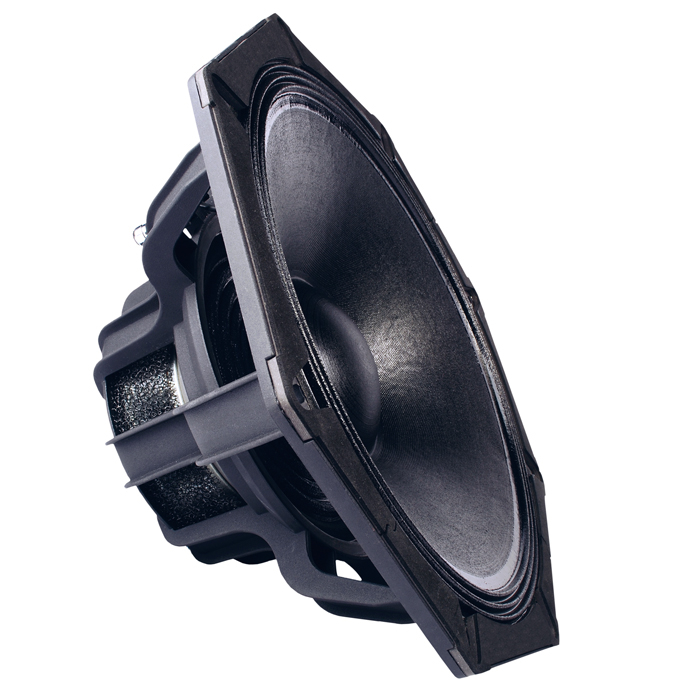

15 FX 560 A
15" Speaker 700 W 8 Ohms
Item no.: FP15FX560A
Guarantee: 24 months
EAN: 4049521112546
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Five Hundred
Item highlights:
15" Speaker 700 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 Inch
Nominal Diameter
380 mm
Voice Coil
3 Inch
Voice Coil
77 mm
Overall diameter
388 mm
Pitch Circle Diameter
374 mm
Cut- out Measurement
354 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
184.6
Nominal Impedance
8
Nominal Load Capacity
700 W
maximum rated load
1400 W
Sensitivity (1 W / 1 m)
99 dB
Frequency response
40 Hz - 4000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
14 mm
Fs (Resonance Frequency)
38 Hz
Re (DC resistance)
5.2 Ω
Qms (mechanical quality)
6.76
Le (inductance of the voice coil)
0.64 MH
Qes (electrical quality)
0.31
Qts (overall quality)
0.3
Vas (equivalent volume)
143
Mms (moving mass)
115 g
BL (power factor)
21.5 T/M
Xmax (maximum displacement)
9.42 mm
Cms (elasticity of the suspension)
0.15 MM/N
Sd (membrane area)
813 CM²
Rms (mechanical loss resistance)
4.06 KG/S
