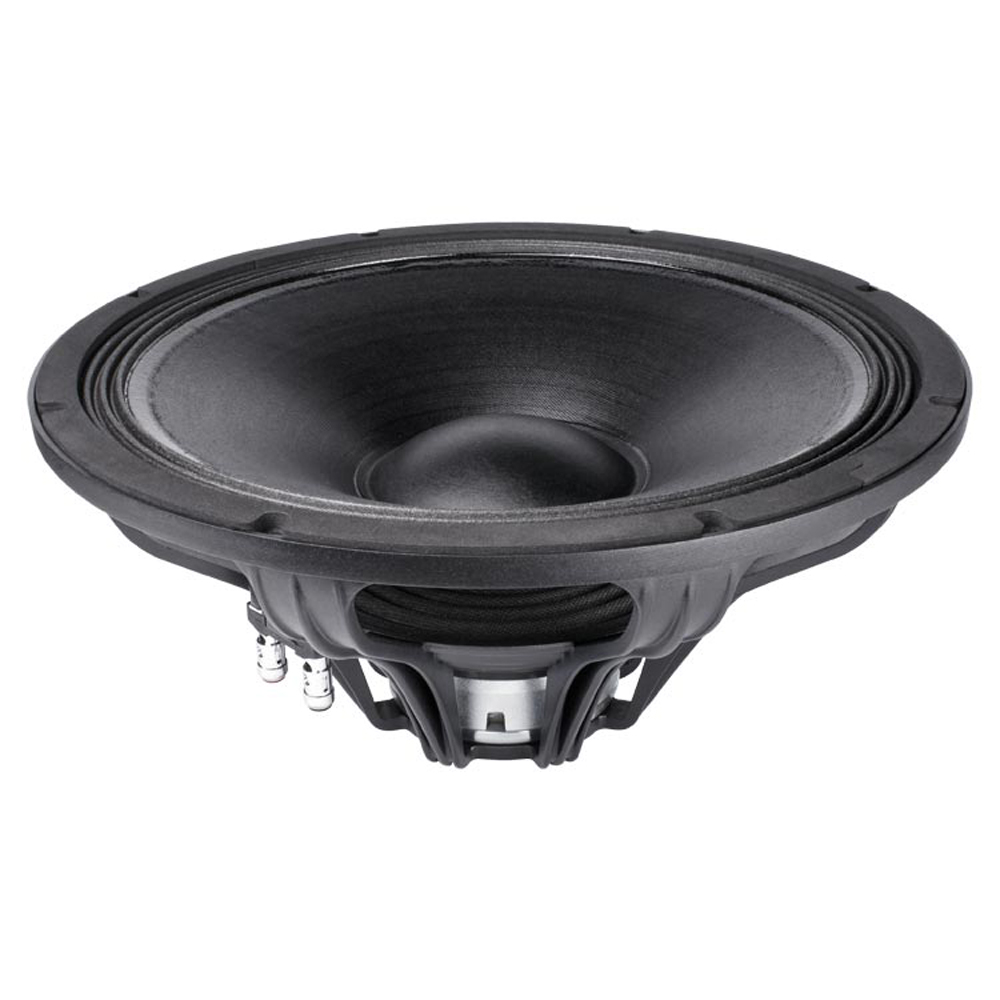

15 FH 520
15" Speaker 16 Ohm - 600 Watt
Item no.: FP15FH520B
Guarantee: 24 months
EAN: 4049521217159
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
15" Lautsprecher 16 Ohm - 600 Watt
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 Inch
Nominal Diameter
380 mm
Voice Coil
3 Inch
Voice Coil
77 mm
Overall diameter
393 mm
Pitch Circle Diameter
374 mm
Cut- out Measurement
356 mm
Mounting holes
8
Diameter of fixing holes
9.5 mm
Depth
181.3
Nominal Impedance
16
Nominal Load Capacity
600 W
maximum rated load
1200 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
40 - 40,000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Fs (Resonance Frequency)
42 Hz
Re (DC resistance)
12.7 Ω
