15 CN 682 H

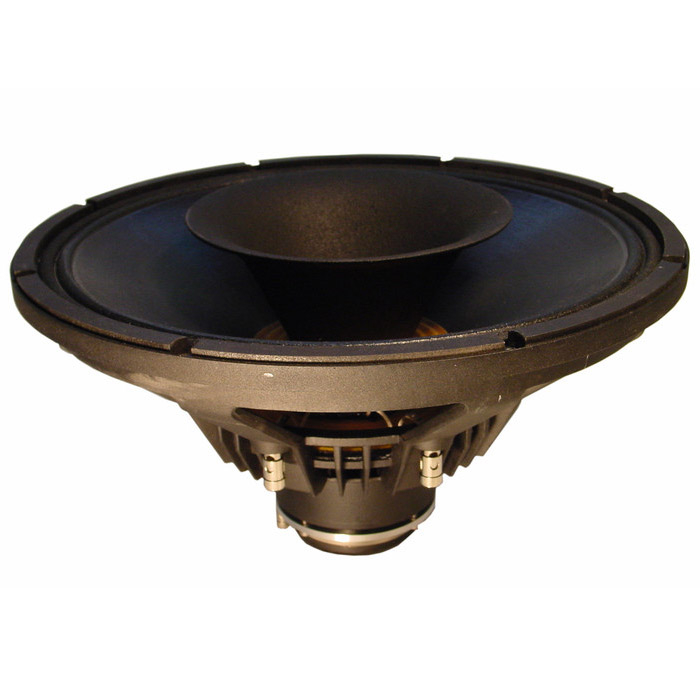

15" Coaxial Neodymium Speaker 500 W + 80 W 16 Ohms
Item no.: BMS15CN682H
Guarantee: 24 months
EAN: 4049521102448
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
15" Coaxial Neodymium Speaker 500 W + 80 W 16 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
15 Inch
Loudspeaker dimensions (mm)
381 mm
Overall diameter
388 mm
Pitch Circle Diameter
371 mm
Cut- out Measurement
358 mm
Mounting holes
8
Diameter of fixing holes
7 mm
Total depth
215 mm
Nominal impedance
16 Ω
RMS
500 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
40 Hz - 20,000 Hz
Woofer voice coil (inch)
3 Inch
Woofer voice coil (mm)
77 mm
Voice Coil Material Woofer
Aluminium
Woofer magnet
Neodymium
Magnetic gap depth Woofer
8 mm
Fs (Resonance Frequency)
39 Hz
Re (DC resistance)
5.8 Ω
Qms (mechanical quality)
6.86
Le (inductance of the voice coil)
0.65 MH
Qes (electrical quality)
0.37
Qts (overall quality)
0.35
Vas (equivalent volume)
157.8 l
Mms (moving mass)
107 g
BL (power factor)
20.17 T/M
Xmax (maximum displacement)
5.5 mm
Cms (elasticity of the suspension)
0.16 MM/N
Sd (membrane area)
850 CM²
HF driver voice coil
1.75 Inch
HF driver voice coil (mm)
44.4 mm
Nominal Impedance HF driver
16 Ω
Nominal Load HF driver
80 W
Maximum Load HF driver
450 W
Sensitivity HF driver (1 W / 1 m)
113 dB
Frequency range HF driver
600 Hz - 20,000 Hz
recommended crossover frequency HF driver
1.200 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
Dispersion (H x V)
60 °
