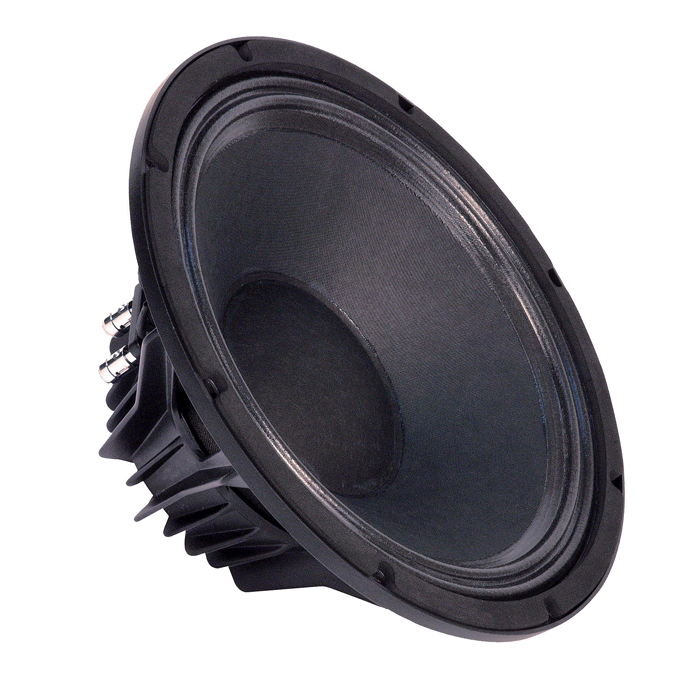

12 PR 300 B
12" Speaker 300 W 16 Ohms
Item no.: FP12PR300B
Guarantee: 24 months
EAN: 4049521164064
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
12" Speaker 300 W 16 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 Inch
Nominal Diameter
300 mm
Voice Coil
2.5 Inch
Voice Coil
65 mm
Overall diameter
315.2 mm
Pitch Circle Diameter
298.5 mm
Cut- out Measurement
283 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
140.6
Nominal Impedance
16
Nominal Load Capacity
300 W
maximum rated load
600 W
Sensitivity (1 W / 1 m)
99 dB
Frequency response
50 Hz - 5000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
50 Hz
Re (DC resistance)
12.1 Ω
Qms (mechanical quality)
4.8
Le (inductance of the voice coil)
0.98 MH
Qes (electrical quality)
0.55
Qts (overall quality)
0.52
Vas (equivalent volume)
76.7
Mms (moving mass)
44.8 g
BL (power factor)
17.5 T/M
Xmax (maximum displacement)
4.92 mm
Cms (elasticity of the suspension)
0.22 MM/N
Sd (membrane area)
489 CM²
Rms (mechanical loss resistance)
2.92 KG/S
