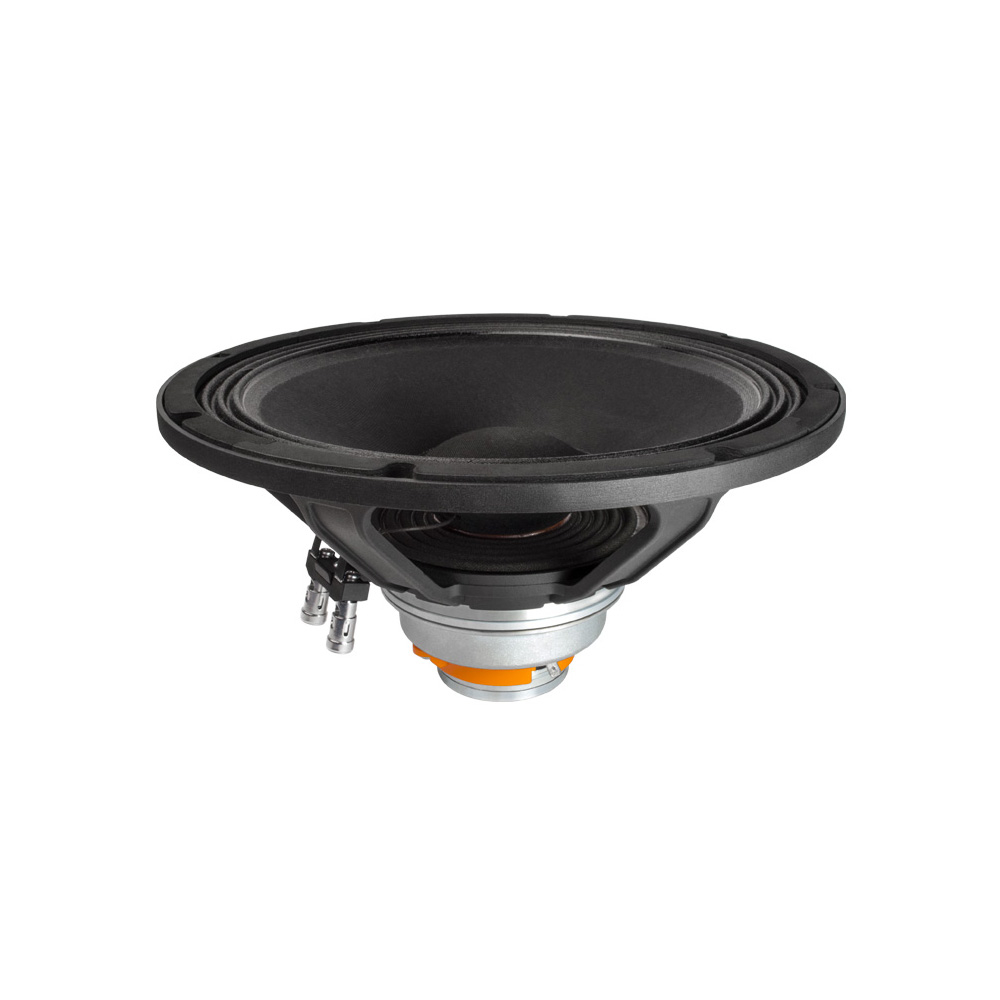

12 HX 240 A
12" Coaxial Neodymium Loudspeaker 250 W 8 Ohms
Item no.: FP12HX240A
Guarantee: 24 months
EAN: 4049521616556
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
12" Coaxial Neodym Loudspreaker 250 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
12 "
Loudspeaker dimensions (mm)
300 mm
Overall diameter
316 mm
Pitch Circle Diameter
298.5 mm
Cut- out Measurement
280 mm
Mounting holes
4
Diameter of fixing holes
5.2 mm
Total depth
162 mm
Weight
4,3 kg
Nominal impedance
8 Ohm(s)
RMS
500 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
55 - 5000 Hz
Woofer voice coil (inch)
2.56 "
Woofer voice coil (mm)
65 mm
Voice Coil Material Woofer
Aluminium
Woofer magnet
Neodymium
Magnetic gap depth Woofer
8 mm
Fs (Resonance Frequency)
56 Hz
Re (DC resistance)
5.5 Ohm(s)
Qms (mechanical quality)
8.14
Le (inductance of the voice coil)
0.54 mH
Qes (electrical quality)
0.41
Qts (overall quality)
0.39
Vas (equivalent volume)
68.4 l
Mms (moving mass)
47.9 g
BL (power factor)
15.2 T/m
Xmax (maximum displacement)
7.37 mm
Cms (elasticity of the suspension)
0.17 mm/N
Sd (membrane area)
539 cm²
Rms (mechanical loss resistance)
2.1 kg/s
HF driver voice coil
1.46 "
HF driver voice coil (mm)
37 mm
Nominal Impedance HF driver
8 Ohm(s)
Nominal Load HF driver
30 W
Maximum Load HF driver
60 W
Sensitivity HF driver (1 W / 1 m)
107 dB
Frequency range HF driver
1500 - 20000 Hz
Voice Coil Carrier HF driver
Kapton
HF driver magnet
Neodymium
Diaphragm material HF driver
Ketone Polymer
