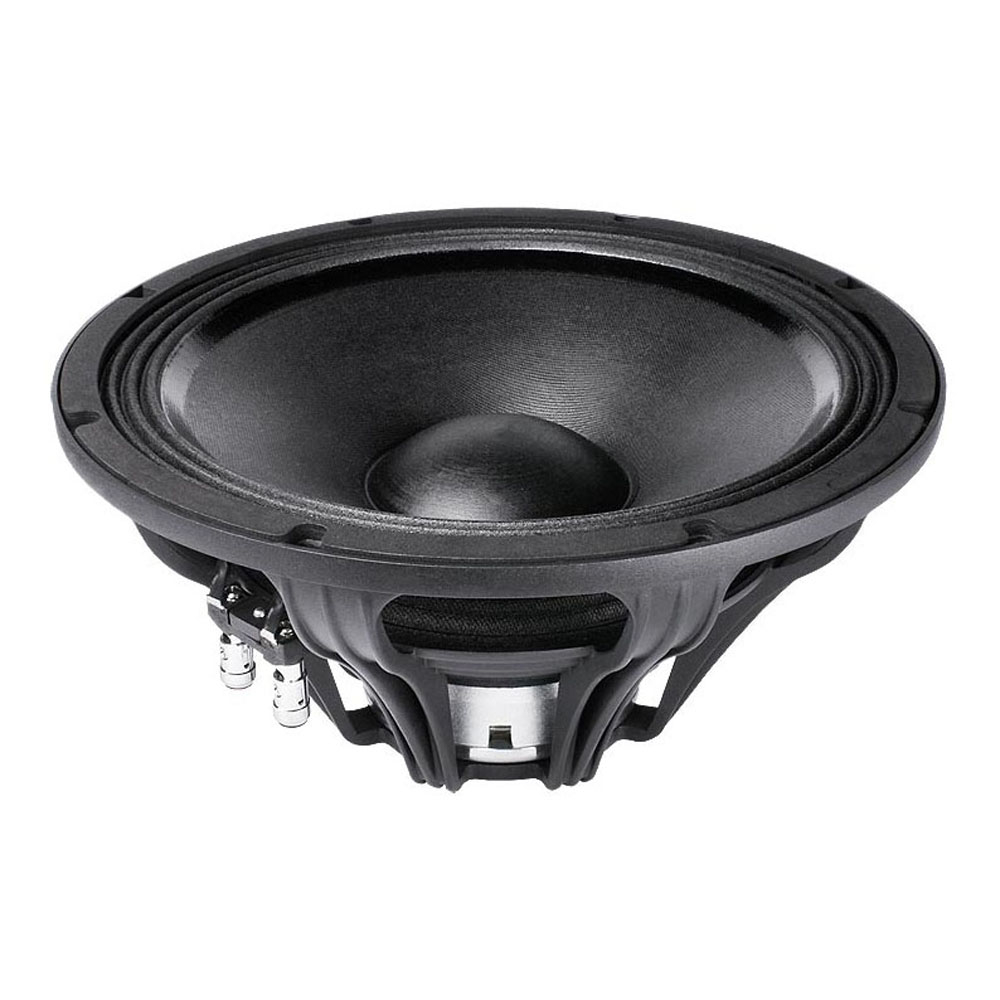

12 FH 520 B
12" Speaker 600 W 16 Ohms
Item no.: FP12FH520B
Guarantee: 24 months
EAN: 4049521190247
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Five Hundred
Item highlights:
12" Speaker 600 W 16 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 "
Nominal Diameter
300 mm
Voice Coil
3 "
Voice Coil
77 mm
Overall diameter
316 mm
Pitch Circle Diameter
298.5 mm
Cut- out Measurement
282 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
155.75 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
600 W
maximum rated load
1200 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
50 - 4000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
12 mm
Fs (Resonance Frequency)
50 Hz
Re (DC resistance)
5.1 Ohm(s)
Qms (mechanical quality)
11.1
Le (inductance of the voice coil)
0.74 mH
Qes (electrical quality)
0.3
Qts (overall quality)
0.29
Vas (equivalent volume)
64.2
Mms (moving mass)
56 g
BL (power factor)
17.3 T/m
Xmax (maximum displacement)
7.25 mm
Cms (elasticity of the suspension)
0.18 mm/N
Sd (membrane area)
500 cm²
Weight
4,2 kg
