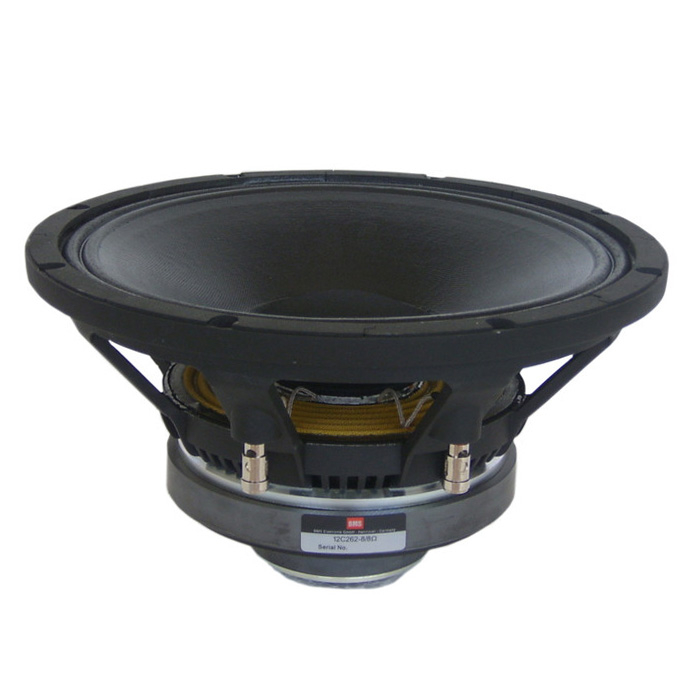

12 C 262 L
12" Coaxial Speaker 400 W + 60 W 8 Ohms
Item no.: BMS12C262L
Guarantee: 24 months
EAN: 4049521022678
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
12" Coaxial Speaker 400 W + 60 W 8 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
12 "
Loudspeaker dimensions (mm)
305 mm
Overall diameter
318 mm
Pitch Circle Diameter
300 mm
Cut- out Measurement
283 mm
Mounting holes
8
Diameter of fixing holes
7 mm
Total depth
179 mm
Weight
7,8 kg
Nominal impedance
8 Ohm(s)
RMS
400 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
55 - 20.000 Hz
Woofer voice coil (inch)
3 "
Woofer voice coil (mm)
77 mm
Voice Coil Material Woofer
copper
Woofer magnet
Ferrite
Magnetic gap depth Woofer
10 mm
Fs (Resonance Frequency)
45.4 Hz
Re (DC resistance)
5.7 Ohm(s)
Qms (mechanical quality)
5.4
Le (inductance of the voice coil)
1.1 mH
Qes (electrical quality)
0.24
Qts (overall quality)
0.23
Vas (equivalent volume)
62.8 l
Mms (moving mass)
65 g
BL (power factor)
21 T/m
Xmax (maximum displacement)
2.5 mm
Cms (elasticity of the suspension)
0.189 mm/N
Sd (membrane area)
487 cm²
HF driver voice coil
1.5 "
HF driver voice coil (mm)
38 mm
Nominal Impedance HF driver
8 Ohm(s)
Nominal Load HF driver
60 W
Maximum Load HF driver
300 W
Sensitivity HF driver (1 W / 1 m)
112 dB
Frequency range HF driver
1.200 - 20.000 Hz
recommended crossover frequency HF driver
1.800 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
ceramic
