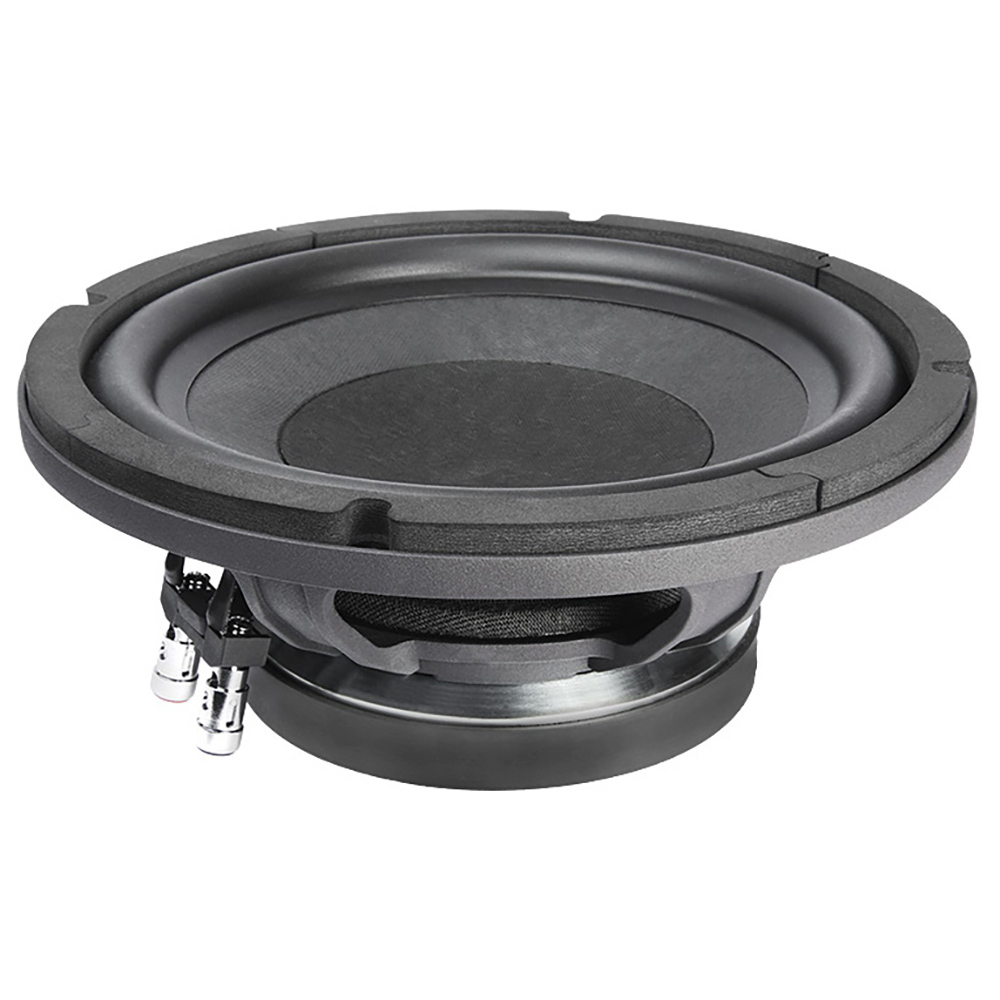

10 RS 350 C
10" Speaker 300 W 4 Ohm
Item no.: FP10RS350C
Guarantee: 24 months
EAN: 4049521466731
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
10" Speaker 300 W 4 Ohm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
250 mm
Voice Coil
2.56 Inch
Voice Coil
65 mm
Overall diameter
261 mm
Pitch Circle Diameter
246 mm
Cut- out Measurement
230 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Depth
116.5
Nominal Impedance
4
Nominal Load Capacity
300 W
maximum rated load
600 W
Sensitivity (1 W / 1 m)
91 dB
Frequency response
40 Hz - 2500 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
40 Hz
Re (DC resistance)
3.2 Ω
Qms (mechanical quality)
6.2
Le (inductance of the voice coil)
0.45 MH
Qes (electrical quality)
0.33
Qts (overall quality)
0.31
Vas (equivalent volume)
36.1
Mms (moving mass)
64.5 g
BL (power factor)
12.5 T/M
Xmax (maximum displacement)
7.17 mm
Cms (elasticity of the suspension)
0.24 MM/N
Sd (membrane area)
322 CM²
Rms (mechanical loss resistance)
2.61 KG/S
