10 PR 310 A

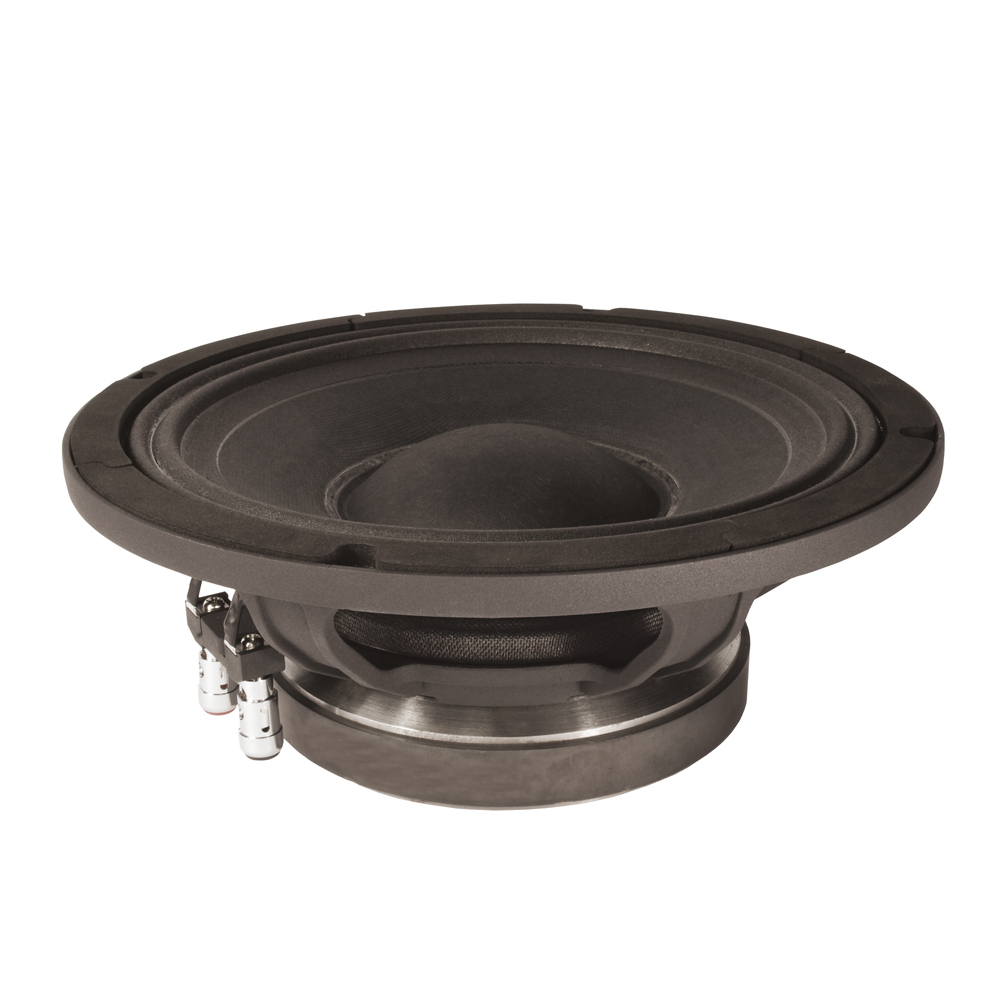

10" Speaker 300 W 8 Ohm
Item no.: FP10PR310A
Guarantee: 24 months
EAN: 4049521133145
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
10" Speaker 300 W 8 Ohm - Ferrite
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
250 mm
Voice Coil
2.5 Inch
Voice Coil
65 mm
Overall diameter
261 mm
Pitch Circle Diameter
246 mm
Cut- out Measurement
230 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Depth
109
Nominal Impedance
8
Nominal Load Capacity
300 W
maximum rated load
600 W
Sensitivity (1 W / 1 m)
98 dB
Frequency response
60 Hz - 4000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
60 Hz
Re (DC resistance)
5.4 Ω
Qms (mechanical quality)
5.7
Le (inductance of the voice coil)
0.64 MH
Qes (electrical quality)
0.36
Qts (overall quality)
0.34
Vas (equivalent volume)
28
Mms (moving mass)
36.9 g
BL (power factor)
14.4 T/M
Xmax (maximum displacement)
4.92 mm
Cms (elasticity of the suspension)
0.19 MM/N
Sd (membrane area)
322 CM²
Rms (mechanical loss resistance)
2.44 KG/S
