10 FH 500 C

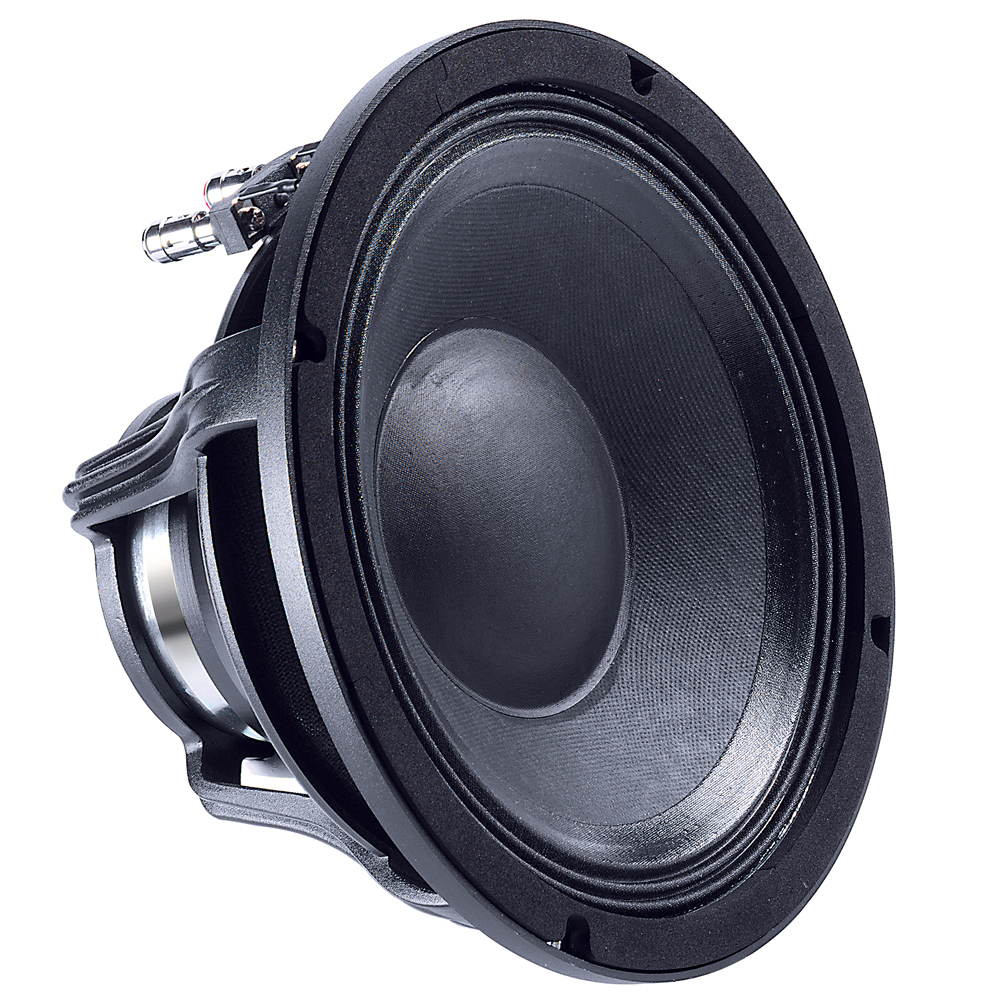

10" Speaker 500 W 4 Ohms
Item no.: FP10FH500C
Guarantee: 24 months
EAN: 4049521136634
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
10" Speaker 500 W 4 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
250 mm
Voice Coil
3 Inch
Voice Coil
77 mm
Overall diameter
261 mm
Pitch Circle Diameter
246 mm
Cut- out Measurement
232 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Depth
141.3
Nominal Impedance
4
Nominal Load Capacity
500 W
maximum rated load
1000 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
60 Hz - 4000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
10.5 mm
Fs (Resonance Frequency)
60 Hz
Re (DC resistance)
5.1 Ω
Qms (mechanical quality)
3.28
Le (inductance of the voice coil)
0.85 MH
Qes (electrical quality)
0.28
Qts (overall quality)
0.26
Vas (equivalent volume)
22.85
Mms (moving mass)
47 g
BL (power factor)
17.9 T/M
Xmax (maximum displacement)
7.25 mm
Cms (elasticity of the suspension)
0.15 MM/N
Sd (membrane area)
328 CM²
Rms (mechanical loss resistance)
5.4 KG/S
