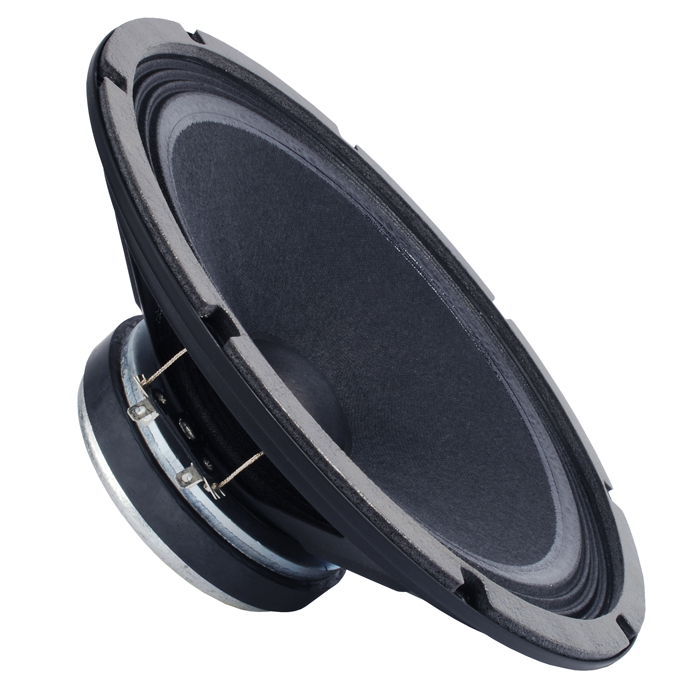

10 FE 200 C
10" Speaker 150 W 4 Ohms
Item no.: FP10FE200C
Guarantee: 24 months
EAN: 4049521156403
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
10" Speaker 150 W 4 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 "
Nominal Diameter
250 mm
Voice Coil
1.46 "
Voice Coil
37 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Cut- out Measurement
233.8 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
102 mm
Nominal Impedance
4 Ohm(s)
Nominal Load Capacity
150 W
maximum rated load
300 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
50 - 4.500 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
55 Hz
Re (DC resistance)
5.9 Ohm(s)
Qms (mechanical quality)
11.3
Le (inductance of the voice coil)
0.41999999999999998 mH
Qes (electrical quality)
0.73999999999999999
Qts (overall quality)
0.69999999999999996
Vas (equivalent volume)
53.4
Mms (moving mass)
24.5 g
BL (power factor)
8.2 T/m
Xmax (maximum displacement)
4.67 mm
Cms (elasticity of the suspension)
0.34000000000000002 mm/N
Sd (membrane area)
332 cm²
Rms (mechanical loss resistance)
0.75 kg/s
Weight
2,2 kg
