10 C26 2L

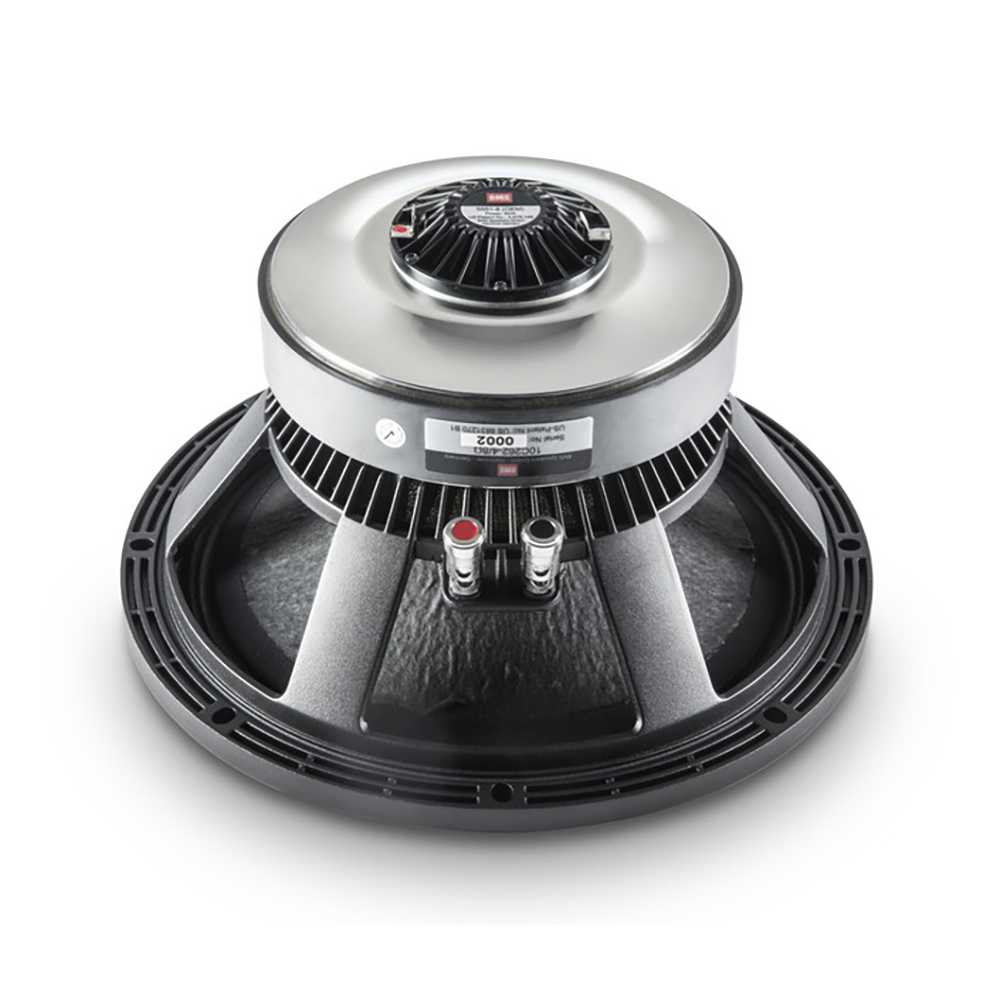

10" Coaxial Speaker 400 W 8 Ohms
Item no.: BMS10C262L
Guarantee: 24 months
EAN: 4049521466229
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
- 96 dB sensitivity 1 W / 1 m
- 400W Power handling
- 2.5” Copper sandwich voice coil
- Double treated cone for water protection
- Triple aluminum demodulating ring
- Single point source providing coherent wave front
- Very high SPL, superb quality sound
- Optimal for compact 2-way systems
- Light weight carbon fiber diaphragm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
254 mm
Voice Coil
2 Inch
Voice Coil
50.8 mm
Overall diameter
260 mm
Pitch Circle Diameter
244 mm - 247 mm
Cut- out Measurement
230 mm
Mounting holes
8
Diameter of fixing holes
7.5 mm
Depth
146
Nominal Impedance
8
Nominal Load Capacity
80 W
maximum rated load
450 W
Sensitivity (1 W / 1 m)
112 dB
Frequency response
1000 Hz - 20000 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
65 Hz
Re (DC resistance)
5.9 Ω
Qms (mechanical quality)
4.6
Le (inductance of the voice coil)
0.5 MH
Qes (electrical quality)
0.4
Qts (overall quality)
0.37
Vas (equivalent volume)
25.5
Mms (moving mass)
34 g
BL (power factor)
14,3 T/M
Xmax (maximum displacement)
5.5 mm
Cms (elasticity of the suspension)
0.176 MM/N
Sd (membrane area)
344 CM²
