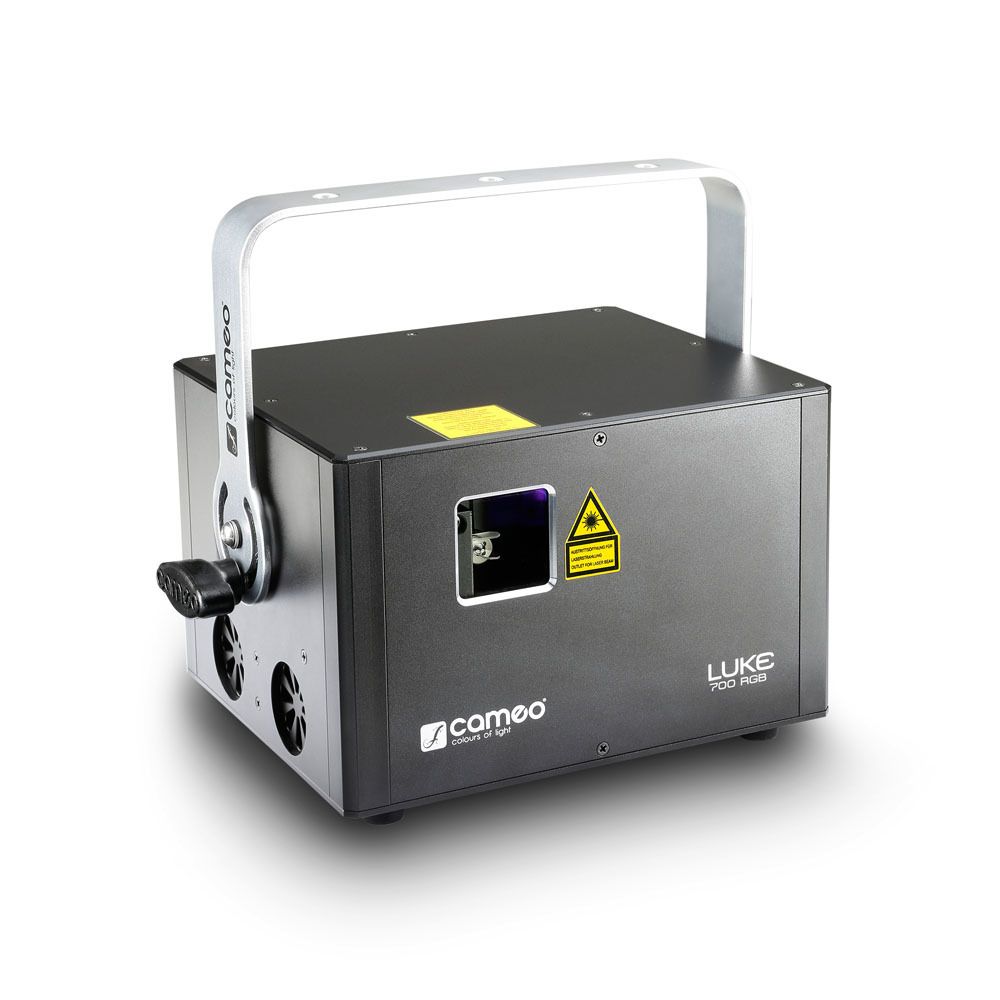

LUKE 700 RGB

Professional 700 mW RGB Show Laser

Item no.: CLLLUKE700RGB

Guarantee: 24 months

EAN: 4049521176333

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:LUKE

Questions about the item?

Item highlights:

Professional laser show light
Dual layer construction for maximum optical performance
High speed 30 Kpps galvo scanners @ 8° ILDA
128 pattern presets
Precision beams with minimum divergence for razor-sharp projections
ILDA, DMX and sound control plus auto function
Master, slave and standalone modes
Display with 4 function keys for easy manual operation
Scan Fail Safety system
Neutrik powerCON mains inputs and outputs
Rugged aluminium enclosure with low noise fan and key switch

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Lasers
Its marked directional impact means laser light remains bright and clearly visible over long distances. Lasers are highly energy-efficient and create tightly clustered, narrow beams of light that are ideal for creating pronounced lighting effects.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

Laser

Total power

700 mW

Colour spectrum

RGB

Wavelength

447 nm, 532 nm, 650 nm

Beam Data

approx. 3 mm / 2 mrad divergence

Laser sources

DPSS, Laser diode

Laser Class

4

Scanner

High performance galvoscanner, 30 kpps @ 8 degrees ILDA

Max. scan angle

60 °

Operating modes

Auto programs, DMX 512 protocol, ILDA, sound control

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

ILDA input

25-pin Sub-D male

ILDA output

25-pin Sub-D female

DMX mode

11-channel, 4-channel

Controls

Enter, Mode, Value Down, Value Up

Power supply

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

75 W

Power supply connector

Neutrik PowerCon

Housing material

Aluminium

Cabinet colour

Black

Width

215 mm

Height

157 mm

Depth

225 mm

Weight

5,5 kg

Description

LUKE 700 RGB

Projecting red, green and blue color mixes with 700 mW output power the LLUKE 700 RGB includes diode and DPSS lasers with 3 mm beam diameters and no more than 2 mrad divergence.

The Luke Series professional show lasers utilize an ingenious dual layer design to separate the optical components from the power supply and fan to vastly improve performance. They feature high speed 30 Kpps galvo scanners @ 8 degrees ILDA, a 60° scan angle and 128 pattern presets for exciting graphics projections with high visibility and pinpoint beams. The Luke laser lights include an ILDA interface on 25-pin D-sub connectors for computer control, 3-pin inputs and outputs for DMX control in 4-channel and 11-channel modes and a built-in microphone with adjustable sensitivity for sound control. In addition, they provide master, slave and standalone capability. The rugged high quality aluminium enclosure sports a key switch to prevent unauthorized use, a bright display with four function keys for manual operation and Neutrik powerCON mains connectors. A low noise fan keeps the compact units quiet and cool, and for audience safety the Luke Series laser lights are equipped with a “Scan Fail Safety” system.

Note: Sharing identical presets, the Luke lasers are compatible with the Ioda series for master and slave operation. With switchable inversion, the master and slave combo is capable of producing the most interesting and impressive laser show effects.
