Item no.: 87471X7
Guarantee: 24 months
EAN: 4049521683039
Sliding scale: 1
Unit: Piece
Packaging unit: 25
Series:Power Distribution Units
Versions:
Item highlights:
- Mountable Power Strip from our 19" PDU range
- With recessed, illuminated switch and protective cap
- 7 Schuko sockets rotated 45°
- With 8-way adjustable mounting brackets
- 1.4 m PVC cable with angled Schuko plug
Specifications
Input connector type
Schuko plug male angled
Output connector type
Schuko socket female
Cable length
1.8 m
Material
Aluminium, Plastic
Cable detachable
No
On/Off switch
Yes
Number of outputs
7
Colour
Black
Operation voltage
100 V AC - 250 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
6 mm
Width
485 mm
Height
45 mm
Depth
54 mm
Rack width
19"
Rack height
1 U
Weight
843 g
Description

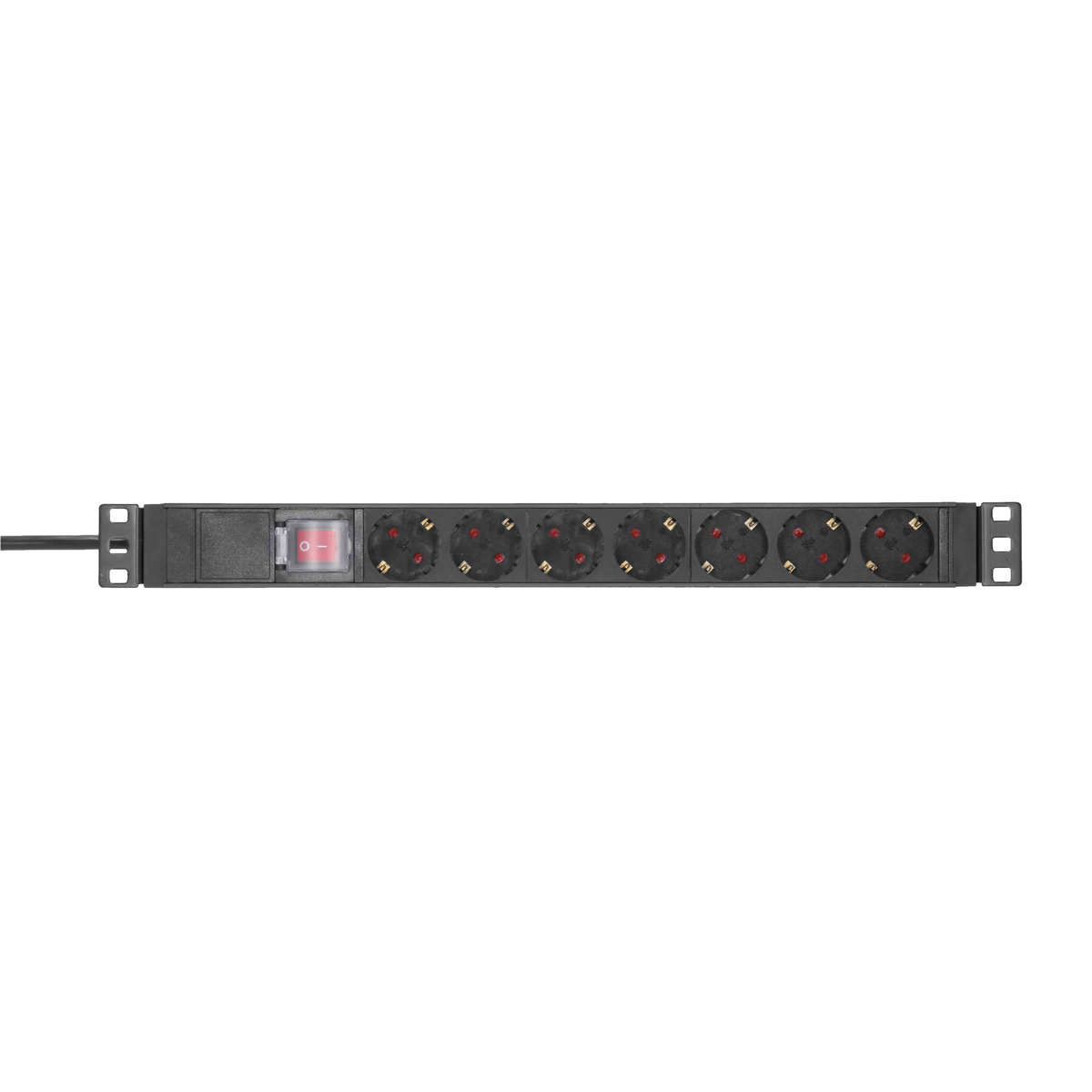

RACK PDU 7S
The practical solution for your 19" rack. Our 87471 X7 with 8-way adjustable stable mounting ears and 7 Schuko sockets comes with a protective cap for the switch. This prevents the power distributor from being switched off accidentally. The cable routing on the side is supplied with a PVC cable (H05VV-F) with 3 x 1.5 mm² inner conductor and an angled Schuko plug.
