Item no.: AHPROPORT2P
EAN: 4049521265860
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Series:AH Proports
Item highlights:
- Mobile power distribution unit from our PRO PORT® Series
- With 2 x Schuko sockets IP54
- PowerIn BLU power supply line & PowerOut GREY continuation
- Sturdy metal housing IP20
- With 2 x M10 mounting points (for Adam Hall Super Clamp f.e.)
Specifications
Input connector type
Mains socket indoor power in male & powerCON®
Input protection class
IP20
Output connector type
Schuko socket female
Output protection class
IP54
Output 2nd connector type
Mains socket indoor power out male & powerCON®
Mounting
M10
Material
Steel
Coating
Powder coated
Colour
Black
Operation voltage
100 V AC - 230 V AC / 50 - 60 Hz
Max. Amperage
16 A
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1,5 mm²
Protection class
IP20
Width
208 mm
Height
65 mm
Depth
78 mm
Weight
770 g
Description

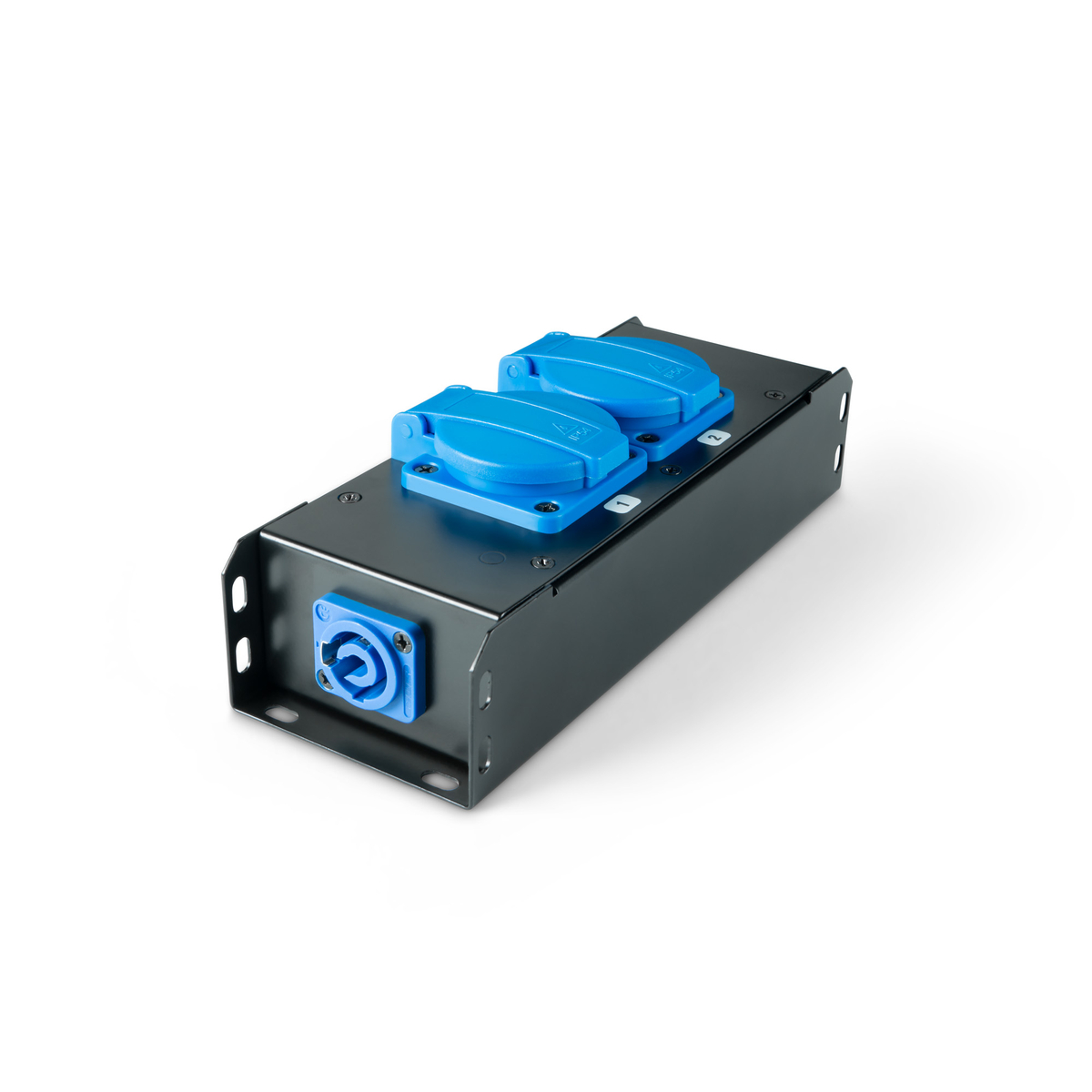

PRO PORT 2
Designed for easy power distribution on stages, trusses and in gear rigs, the PROPORT 2P features 2 type F grounded outlets with flip lids plus Power Twist input and output connectors on the narrow ends. The rugged metal enclosure also provides two female thread M10 suspension points.
