5 STAR H TCON A 0150
NEW

5 STAR H TCON A 0150

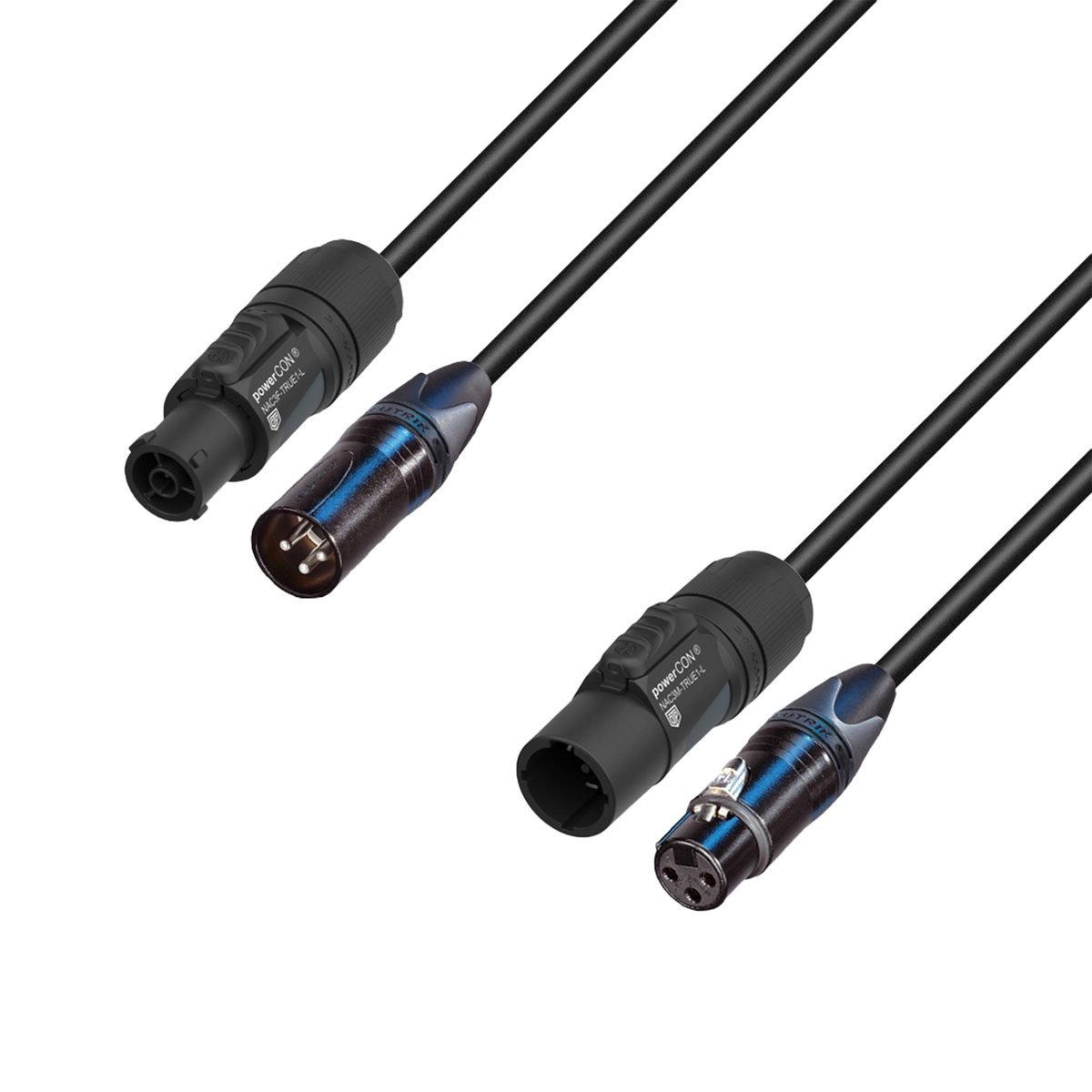

Hybrid cable audio | Neutrik® XLR x TRUE1® | 1.5 m

Item no.: K5HTCONA0150

Guarantee: 24 months

EAN: 4049521980015

Sliding scale: 1

Unit: Piece

Packaging unit: 15

Series:5 Star

Versions:

Item highlights:

  • Hybrid cable for simultaneous audio and power transmission from our 5 STAR SERIES
  • Original Neutrik® connectors for maximum quality and reliability
  • XLR connectors with silver-plated contacts for optimal signal transmission
  • Neutrik TRUE1® power connector – pluggable under load, standard-compliant, IP67-certified
  • Conductor cross-sections: 0.34 mm² for audio, 2.5 mm² for power
  • Flexible PVC jacket made from a special soft-PVC compound
  • Includes accessories: Velcro cable tie and two transparent heat-shrink tubes for labelling
  • Ideal for professional audio setups (e.g. connecting LD Systems MAILA systems)
  • Developed by the Adam Hall Cables® crew in Germany, manufactured in the EU

Specifications

Cable length
1.5 m
Split end length
40 cm
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
17 mm
Cable colour
Black
Connector type plug 1
XLR 3-pole male
Model name plug 1
Neutrik NC3MXX-BAG
Contact material plug 1
Silver plated
Connector type plug 2
XLR 3-pole female
Model name plug 2
Neutrik NC3FXX-BAG
Contact material plug 2
Silver plated
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,34 mm²
AWG
22
Capacity/m
55 pF
Conductor impedance/km
85 Ohm
Shield
Spiral copper shielding
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
5 mm
Plug type connector 1
Mains plug device outdoor female & TRUE1®
Model name connector 1
Neutrik NAC3F-TRUE1-L
Plug type connector 2
Mains plug device outdoor male & TRUE1®
Model name connector 2
Neutrik NAC3M-TRUE1-L
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
3 x 2,5 mm²
AWG
13
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
10 mm
Weight
867 g

Description

5 STAR H TCON A 0150

The 5 STAR H TCON A is a premium hybrid cable from the Adam Hall 5 STAR SERIES, designed for professional applications where top-tier quality and reliability are essential. By transmitting audio and power signals simultaneously, it enables efficient cabling while reducing clutter ̶ perfect for live events, theatre productions and fixed installations.

The 5 STAR H TCON A is built with high-end components to ensure optimal signal transmission and long-lasting durability. It features original Neutrik® connectors renowned for their exceptional reliability and longevity. The XLR connectors are equipped with silver-plated contacts to ensure outstanding signal quality and minimize loss. For power transmission, a Neutrik TRUE1® connector is used, which is pluggable under load, standard-compliant and IP67-certified for protection against dust and water.

The cable boasts a conductor cross-section of 0.34 mm² for audio and 2.5 mm² for power, making it ideal for professional applications. Its flexible PVC jacket, made from a special soft-PVC compound, offers high durability while remaining easy to handle. The package also includes a hook-and-loop cable tie and two transparent heat-shrink tubes for individual labelling.

Whether for a concert, theatre production or event with demanding audio control, the 5 STAR H TCON A ensures minimal signal loss and reduced voltage drops for a reliable performance. Developed in Germany and manufactured in the EU, it meets the highest standards and guarantees a seamless show without compromise.
