Item no.: K4DHM0020IP65
Guarantee: 24 months
EAN: 4049521251832
Sliding scale: 1
Unit: Piece
Packaging unit: 150
Series:4 Star
Versions:
Item highlights:
- 5-pin XLR/f and 3-pin XLR/m connectors with gold plated contacts
- Highly flexible AES/EBU & DMX cable
- Twin OFC conductors and braid shield
- Rated IP65
Specifications
Cable length
0.2 m
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
6.5 mm
Cable colour
Black
Connector type plug 1
XLR 5-pole female
Model name plug 1
Adam Hall K4CXF5IP65
Connector type plug 2
XLR 3-pole male
Model name plug 2
Adam Hall K4CXM3IP65
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,34 mm²
Protection class
IP65
Ambient temperature
-20 - 70 °C
Weight
45 g
Items in this set
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
5
Gender
female
Cable diameter
3.5 - 8 mm
Contacts
gold plated
Connection type
solder contacts
Color
silver, black + orange
Housing
die-cast zinc
Length
73.6 mm
Diameter
16,8 mm
Weight
0,02 kg
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
male
Cable diameter
3.5 - 8 mm
Contacts
gold plated
Connection type
solder contacts
Color
silver, black + orange
Housing
die-cast zinc
Length
70.8 mm
Diameter
18.9 mm
Weight
0,02 kg
Product type
Bulk Cable
Type
DMX & AES/EBU Cable
Color
Black
Overall diameter
6.5 (+/- 0.2 ) mm
Center conductor cross section
0.34 mm²
Center conductor material
Copper, OFC
Center conductor construction
7 x 0.25 mm
Number of internal conductors
2
Shield material
copper
Shield
Braided shielding
Line resistance
53 Ohm(s)
Capacitance
65 pF/m
Jacket material
PVC
Weight
0,05 kg
Description

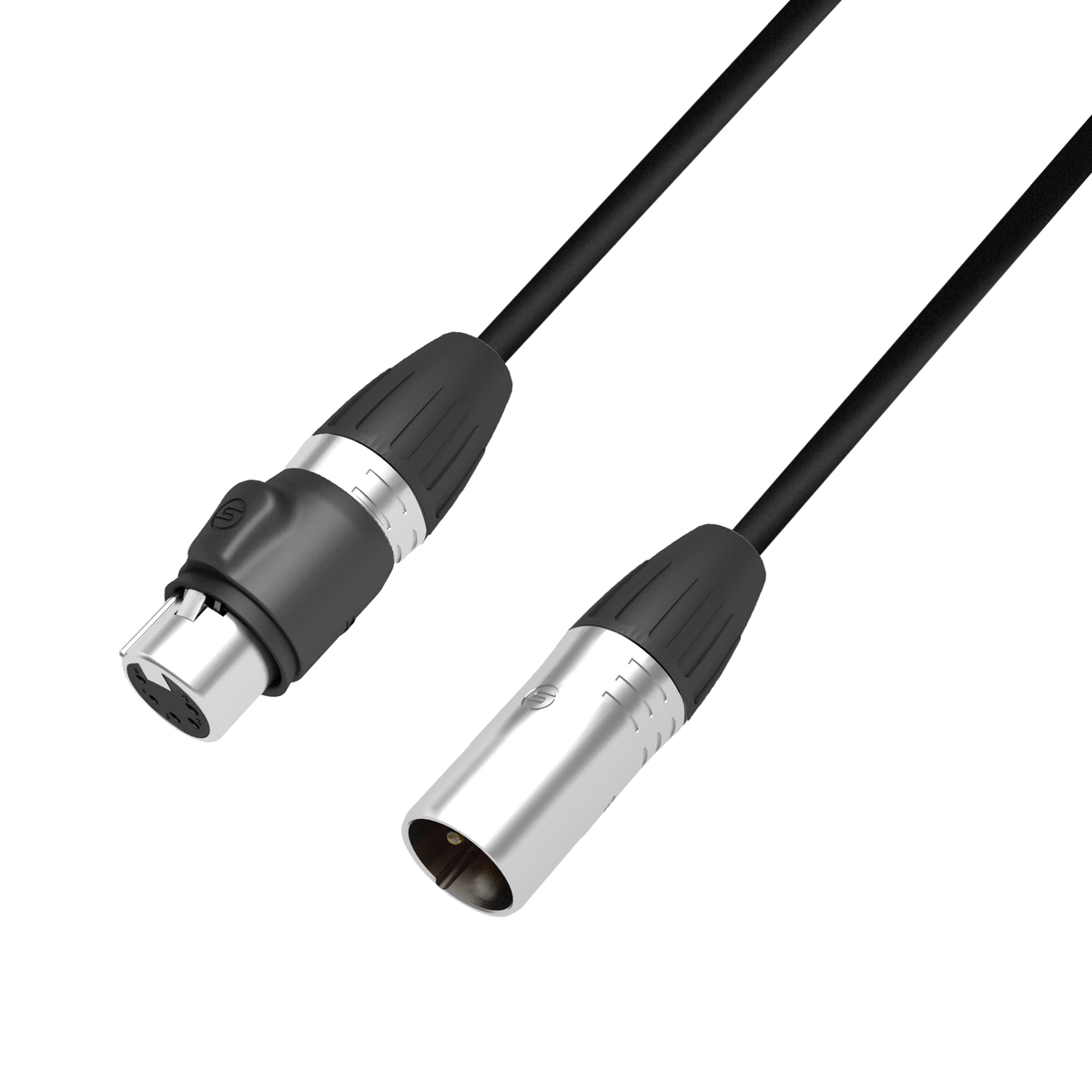

4 STAR DHM 0020 IP65
This high-quality adapter uses highly flexible AES/EBU & DMX cable with twin OFC conductors, braided shielding and rugged PVC jacket. It is terminated with heavy-duty IP65 rated XLR connectors that are protected against dust and water ingress. Length 20 cm.
