Item no.: 8101PSDT1000
Guarantee: 24 months
EAN: 4049521219610
Sliding scale: 1
Unit: Piece
Packaging unit: 8
Series:3 Star
Versions:
Item highlights:
- High-quality Hybrid Cable from our 3 STAR SERIES
- Perfectly suited for supplying devices with power and DMX signals in parallel
- Equipped with the powerCON® compatible power connectors from Adam Hall®
- With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 1.5 mm² mains cable
- The splice length is 40 cm
Specifications
Cable length
10 m
Split end length
40 cm
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
15 mm
Cable colour
Black
Connector type plug 1
XLR 3-pole female
Model name plug 1
Adam Hall 7849
Contact material plug 1
Silver plated
Connector type plug 2
XLR 3-pole male
Model name plug 2
Adam Hall 7850
Contact material plug 2
Silver plated
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,22 mm²
AWG
24
Capacity/m
55 pF
Cable diameter
5 mm
Plug type connector 1
Mains plug indoor power in female & powerCON®
Model name connector 1
Adam Hall 7923V2
Plug type connector 2
Mains plug indoor power out female & powerCON®
Model name connector 2
Adam Hall 7924V2
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
3 x 1,5 mm²
AWG
16
Cable diameter
10 mm
Ambient temperature
-20 - 70 °C
Weight
2.6 kg
Description

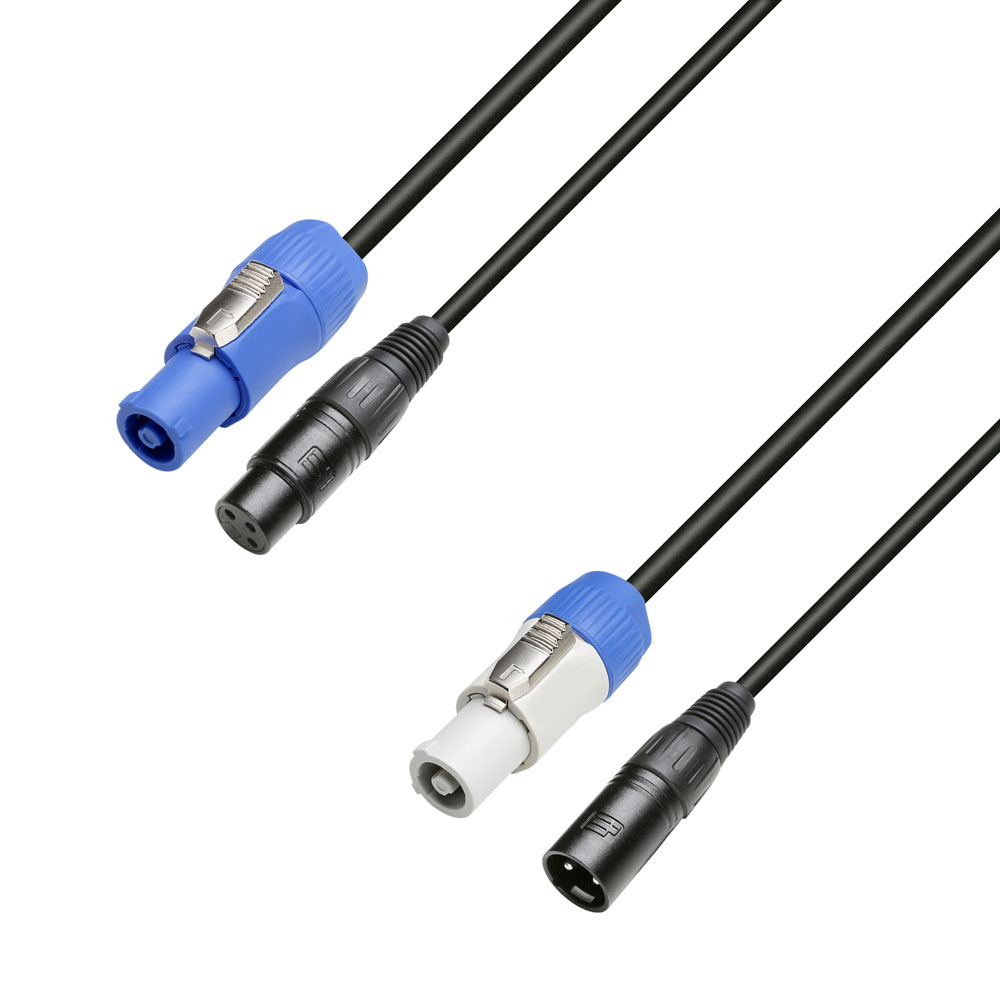

3 STAR H PCON D 1000
Hybrid Cable for DMX & power supply
