Item no.: K3DHM0020
Guarantee: 24 months
EAN: 4049521143571
Sliding scale: 1
Unit: Piece
Packaging unit: 150
Series:3 Star
Versions:
Item highlights:

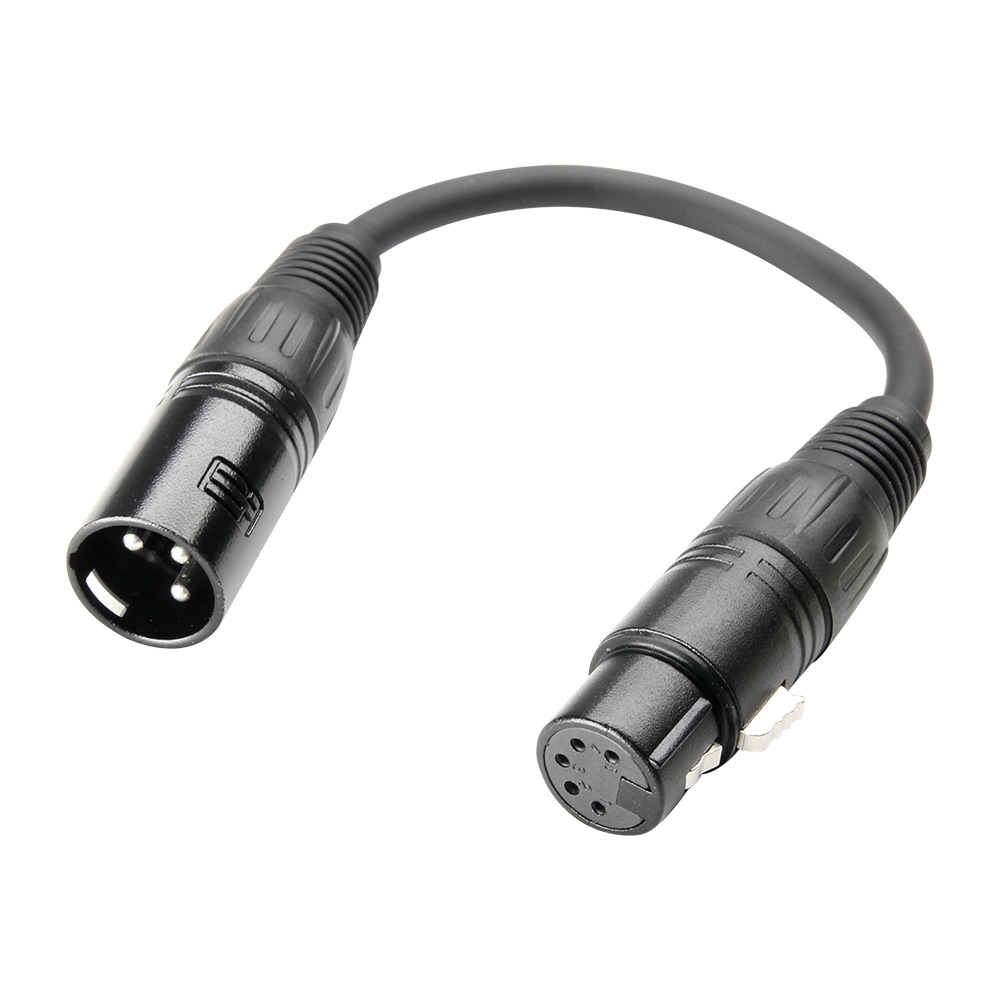

Highly flexible DMX adapter cable with three-pin and five-pin XLR plugs.
Specifications
Cable length
0.2 m
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
5.9 mm
Cable colour
Black
Connector type plug 1
XLR 5-pole female
Model name plug 1
Adam Hall 4 STAR C XF5 BLK
Contact material plug 1
Nickel plated
Connector type plug 2
XLR 3-pole male
Model name plug 2
Adam Hall 4 STAR C XM3 BLK
Contact material plug 2
Nickel plated
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,22 mm²
Ambient temperature
-20 - 70 °C
Weight
77 g
Items in this set
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
male
Cable diameter
8 mm
Contacts
silver plated
Connection type
solder contacts
Color
Black
Housing
die-cast zinc
Strain relief
Plastic
Length
67 mm
Diameter
19 mm
Weight
0,018 kg
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
female
Cable diameter
8 mm
Contacts
silver plated
Connection type
solder contacts
Color
Black
Housing
die-cast zinc
Strain relief
Plastic
Length
70 mm
Diameter
19 mm
Weight
0,018 kg
