Item no.: K3CDMC6215
Guarantee: 24 months
EAN: 4049521206252
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:

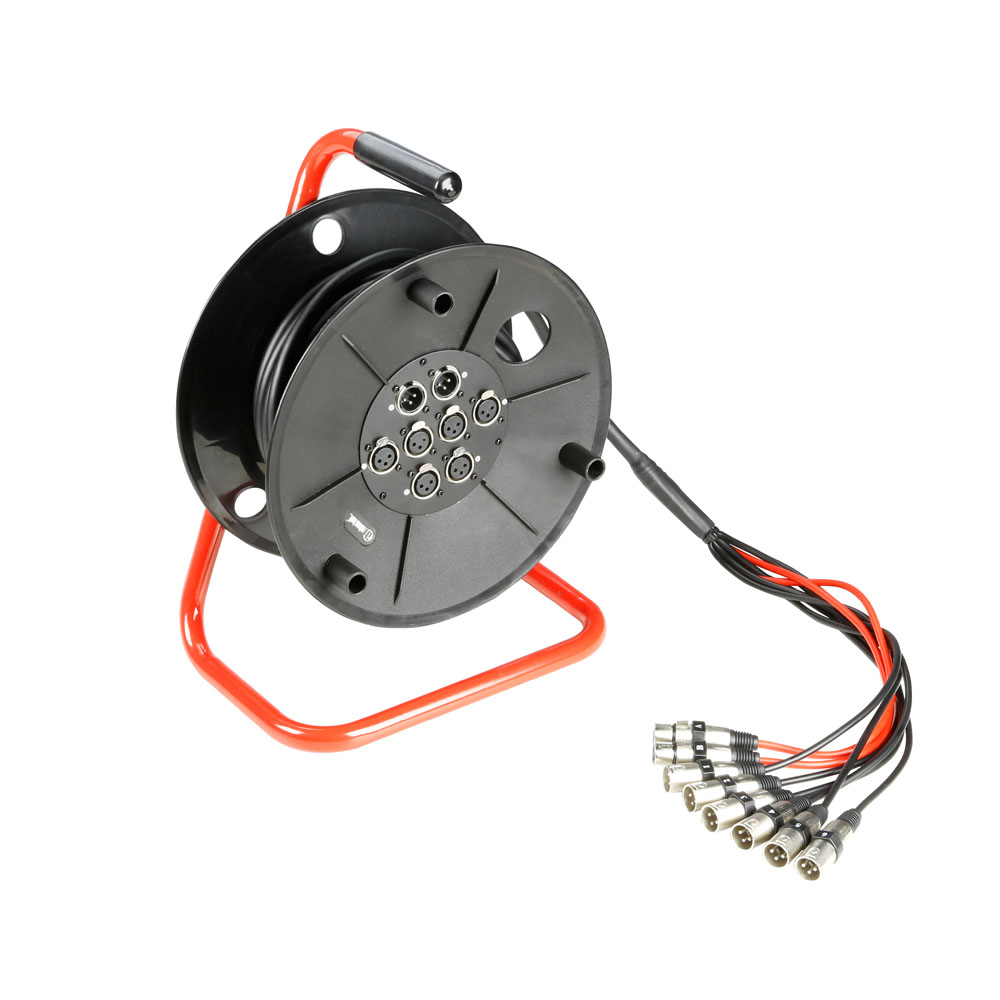

- Cable drum with integrated Stage Box with 6 XLR inputs and 2 XLR outputs
- Equipped with high quality 3-Pin AH Connectors
- Overall and individually wire shielding
- Cable length 15m
Specifications
Product type
Pre-assembled Cables
Type
Multicore cable
Color
Black
Overall diameter
14 mm +/-0.2 mm mm
Cross section
0.14 mm²
Conductor material
copper
Copper strand per conductor
18 x 0.1 mm
Number of Conductors
8 x 2
Screen material
copper
Shield
AL/PT-foil + drain wire 7x 0.18mm tin plated coppe
Line resistance
127 Ohm(s)
Capacitance
52 pF/m
Jacket material
PVC
Weight
3,4 kg
Description
3 STAR CDMC 6215
This 3-Star series audio snake features shielded multicore cable with a hardwearing PVC jacket and individually shielded pairs on a compact cable drum with integrated connector panel. The Splice and reel panel come with high quality 3-pin AH Connectors.
