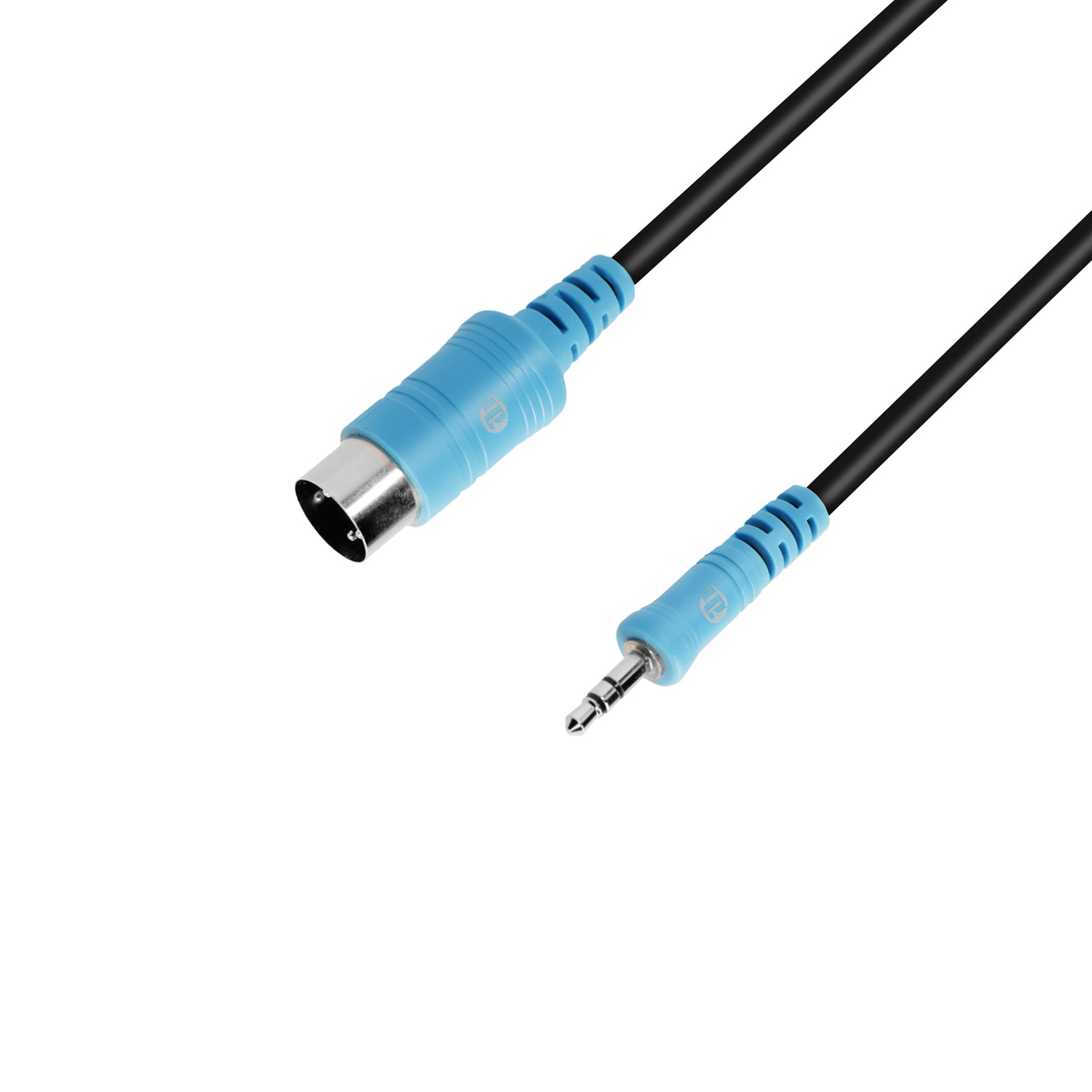

3 STAR BW MIDI 0150

TRS MIDI Cable | Adam Hall® Minijack x MIDI 5-pole | 1.5 m

Item no.: K3BWMIDI0150

Guarantee: 24 months

EAN: 4049521702365

Sliding scale: 1

Unit: Piece

Packaging unit: 100

Series:3 Star

Versions:

Questions about the item?

Find a dealer

Item highlights:

Câble TRS/MIDI (type A) MIDI 2.0
jack 3,5 mm TRS (mini-jack) vers MIDI male
Pour connecter des appareils MIDI avec prise jack et des appareils traditionnels à 5 pôles.
TIP=5 | Ring=4 | Sleeve=2
Disponible en différentes longueurs 0,6m, 0,9m, 1,5m, 3m

Specifications

Cable length

1.5 m

Cable jacket

PVC (Polyvinyl chloride)

Cable diameter

5 mm

Cable colour

Black

Connector type plug 1

Midi plug male

Contact material plug 1

Nickel plated

Connector type plug 2

3.5 mm Jack TRS

Contact material plug 2

Nickel plated

Conductor material

OFC (Oxygen-free copper)

Conductor cross-section

2 x 0,14 mm²

Ambient temperature

-20 - 70 °C

Weight

73 g

Description

3 STAR BW MIDI 0150

With MIDI signal transmission, "only" three poles are used with classic 5-pin plugs. Therefore, the idea was born to equip these devices with the less sensitive TRS (balanced) jack plugs, since three poles can also be used here. In order to be able to connect the devices with the conventional MIDI 5-pin connector to the new devices with jack plugs, we now have adapter cables with both 6.3 mm and 3.5 mm jack plugs. The MIDI Association has defined the new TRS/MIDI Type A standard, which we of course comply with. The cables are available in different lengths.
