MAUI 28
Archive

MAUI 28

Compact Column PA System black

Item no.: LDMAUI28

Guarantee: 24 months

EAN: 4049521115066

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MAUI

Item highlights:

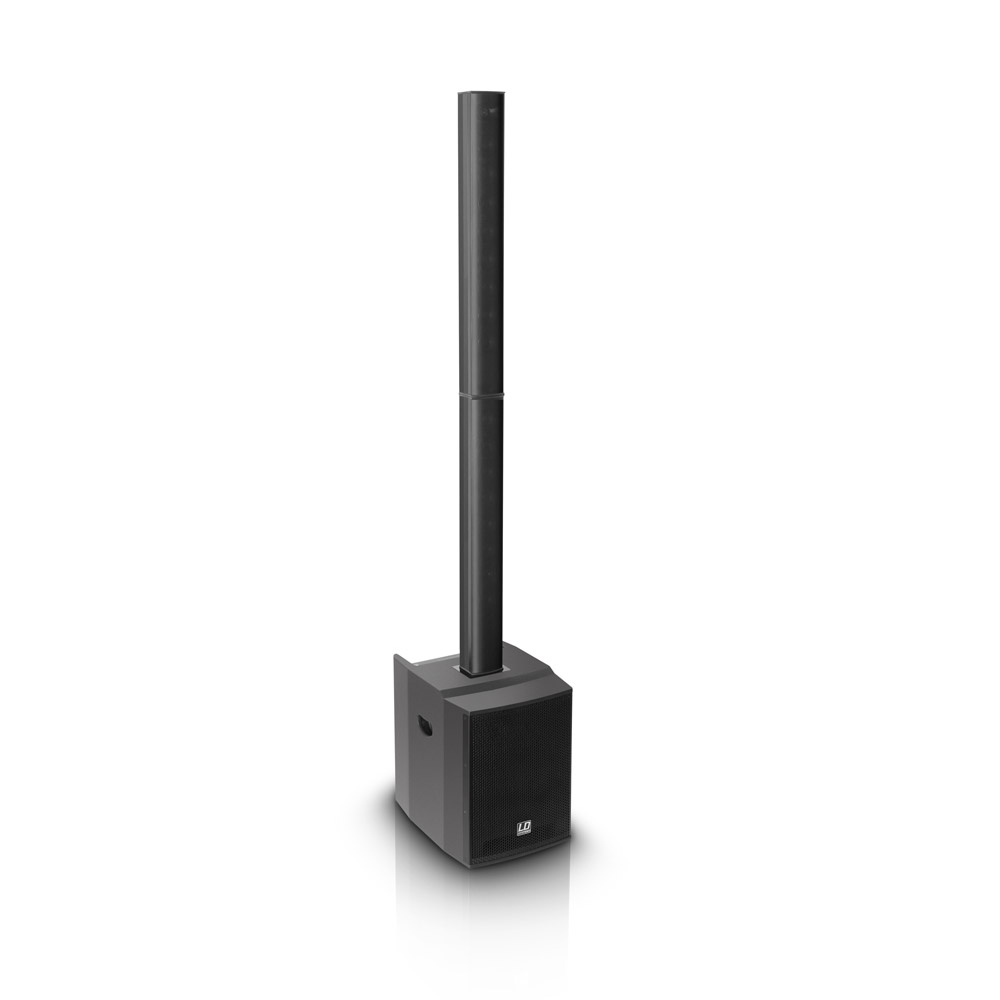

LD MAUI 28 - the compact, active and modular "all-in-one" system

The LD MAUI 28 (Multiple Array User Intuitive) is the perfect solution for musicians and DJs as well as presentations and events with sophisticated music playback.

Because no cables and stands are required, this “plug-and-play” system can be set up and taken down again very easily and quickly. Frequency-response-based 4.1 five-way amping results in a clear, dynamic and balanced sound throughout the frequency range of this system. The array configuration ensures greater coverage with very well-balanced sound distribution even in the farthest corners of the venue.

The MAUI 28, which combines PA and monitoring system in one, guarantees the same sound experience for both audience and musician. No disturbing speaker cables, no speaker stands, no transport issues, simply plug in the mixer and you're ready to go.

Specifications

Color
Black
Max. SPL (continuous)
115 dB
Max. SPL (Peak)
123 dB
Frequency response
45 - 20,000
Dispersion (H x V)
(horizontal) 120 °
Low/mid Woofer dimensions
2 x 8 Inch
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Cabinet construction
V Construction, Bass Reflex
Cabinet material
15 mm Plywood
Cabinet surface
Dura Coat LX Texture Paint
Subwoofer width
390 mm
Subwoofer height
450 mm
Subwoofer depth
510 mm
Subwoofer features
Custom-made multipin connector for vertical array, ergonomically milled handles
Midrange dimensions
16 x 3 Inch
Midrange dimensions (mm)
16 x 76 mm
Midrange magnet
Neodymium
Midrange brand
Custom-made
Tweeter dimensions
1 Inch
Tweeter dimensions (mm)
25 mm
Tweeter magnet
Ferrite
Tweeter brand
Custom-made
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
Aluminium
Mid/Hi system cabinet surface
Paint
Mid/Hi system width
110 mm
Mid/Hi system height
790 mm
Mid/Hi system depth
90 mm
Mid/Hi system features
Vertical array with 4-way amping and extremely broad dispersion characteristic
Amplifier
5-way Class A/B
Amplifier output system (RMS)
400 W
Amplifier output system (peak)
1600 W
Protection circuits
Dual limiter
Cooling
Aluminium heat sink
Controls
mains switch (on/off), Subwoofer Volume, volume
Indicators
Protect (protection circuit engaged), Limit, Lock, Power, Signal
Power supply
transformer, Volex mains socket
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Line inputs
2 (Left/Right)
Line input connectors
XLR, 6.3 mm jack, RCA
Line outputs
2 (Left/Right)
Line output connectors
XLR
Loudspeaker outputs
1
Speaker output connections
Custom-made multipin
