WS 1G8 HHD2
Archive

WS 1G8 HHD2

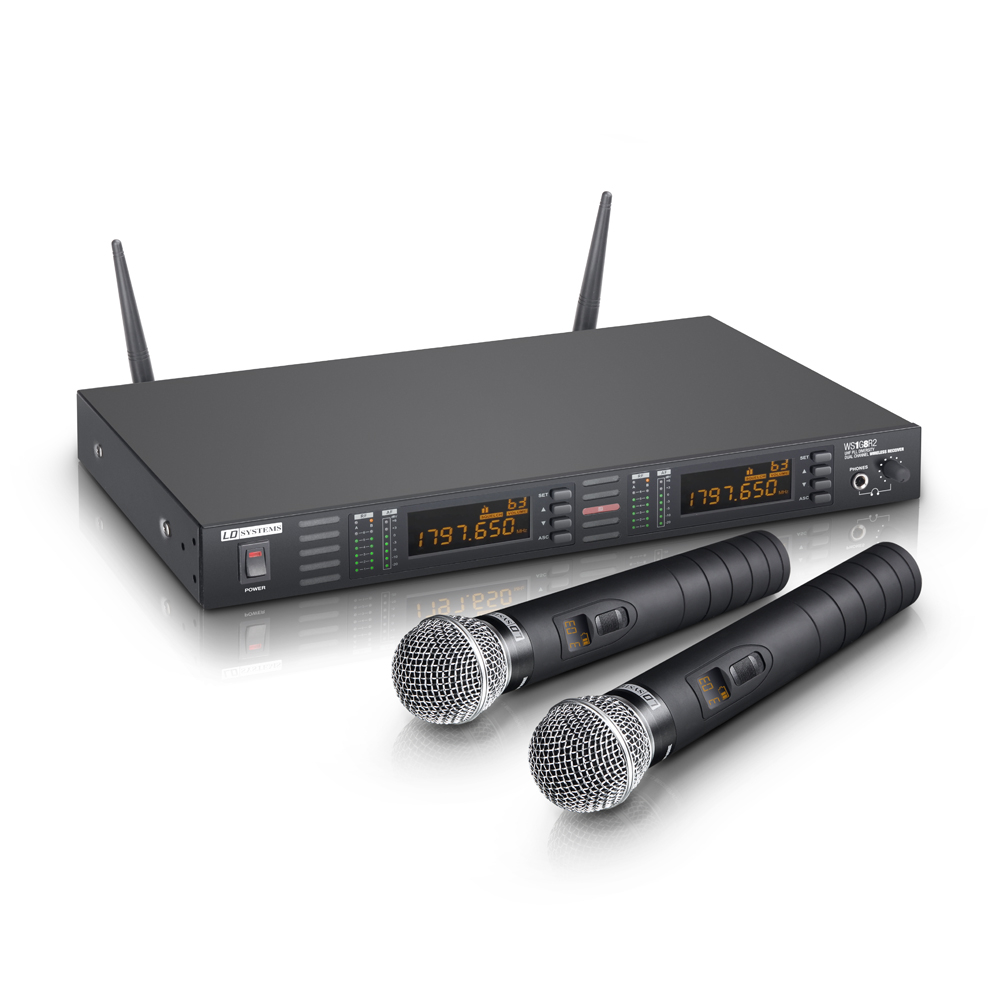

Dual - Wireless Microphone System with 2 x Dynamic Handheld Microphone

Item no.: LDWS1G8HHD2

Guarantee: 24 months

EAN: 4049521148651

Sliding scale: 1

Unit: Piece

Packaging unit: 3

Series:WS 1G8

Item highlights:

The new LD Systems WS1G8 is a LICENSE-FREE* true diversity wireless microphone system with 192 UHF channels that delivers natural sound with a wide dynamic range, high S/N ratio, and low THD in the 1785 – 1800 MHz band. The WS1G8 series permits simultaneous operation of up to 6 systems and is available in various versions. You can choose between a handheld dynamic or condenser microphone or a belt-pack transmitter with your choice of a headset, a lavaliere microphone, a clamp-on microphone for brass instruments or a guitar adapter cable. The system guarantees reliable audio transmission with a frequency response of 50 Hz to 16 kHz. Both the handheld microphone and the belt-pack have a practical LC display for the channel, the group, and the battery status. The automatic channel scan (ASC) function and the lighted multi-function display on the receiver ensure simple setup and operation. With high quality batteries (AA), it is possible to attain running times of up to 13 hours. All WS1G8 systems come with a rugged transport case made of ABS plastic.

* license-free: see PDF "Usage of 1.8 GHz frequency band in Europe for wireless microphones"

Specifications

Product type
Wireless Microphone Systems
Type
Handhelds, true diversity
Transmission frequency range
1785 - 1800 MHz

Items in this set

Product type
Wireless Microphone System Accessories
Type
Belt Packs
Modulation Type
FM
Transmission frequency range
1785 - 1800 MHz
Channels
2 x 192 (16 groups of 12 channels)
Antenna inputs
2
Antenna connector
BNC
Frequency response
50 - 16000lx @ 1m
Noise reduction
Squelch
Transmission optimization
Pilot tone
Audio output, balanced
2 x XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
Controls
ASC, Down, Power On/Off, Set, Up
Indicators
2 x 6-segment RF (A/B), 7-segment AF, antenna active (A/B), LC display
Power supply
12 - 18 V DC
Width
483 mm
Height
44 mm
Depth
190 mm
Weight
2,24 kg
Accessories (included)
Batteries
Product type
Wireless Microphone System Accessories
Type
Microphones
Transmission frequency range
1785 - 1800 MHz
Channels
192 (16 groups of 12 channels)
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
50 - 16.000
Rated HF output power
10 mW
Controls
Power On/Off
Indicators
LC display
Power supply
2 x 1.5 V AA
Operating time
up to 13 hrs., battery-dependent
Length
252 mm
Diameter
52 mm
Weight
0,391 kg
Other features
incl. batteries
